DTC U0336-00: SAS Control Module Error: Notes

DTC U0336:00 (PCM, SKYACTIV-G 2.0) DETECTION CONDITION AND POSSIBLE CAUSE

DTC U0336:00	SAS control module error
DETECTION CONDITION	When any of the following conditions is met: CAN communication line malfunction between SAS control module and PCM SAS control module internal malfunction Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA is not available. Snapshot data is available. DTC is stored in the PCM memory.
Fail-safe function	Not applicable

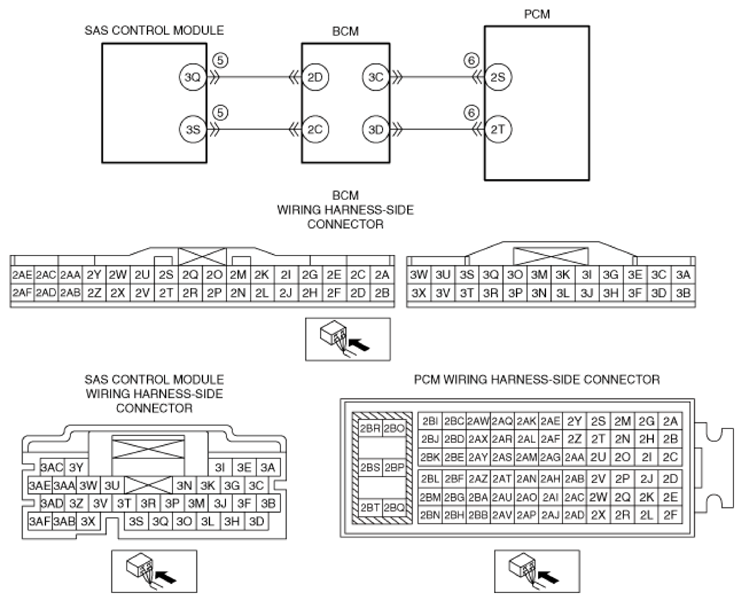

Possible cause	CAN drive error (SAS control module or PCM) CAN communication line malfunction between SAS control module and PCM SAS control module terminal 3Q-BCM terminal 2D SAS control module terminal 3S-BCM terminal 2C BCM terminal 3C-PCM terminal 2S BCM terminal 3D-PCM terminal 2T SAS control module connector or terminals malfunction PCM connector or terminals malfunction SAS control module malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
