DTC U0320-00: EPS Control Module Error: Notes
DTC U0320:00 (PCM, SKYACTIV-G 2.0) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC U0320:00 |
EPS control module error |
| DETECTION CONDITION |
- When any of the following conditions is met:
- CAN communication line malfunction between EPS control module and PCM
- EPS control module internal malfunction Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| Fail-safe function |
|
| Possible cause |

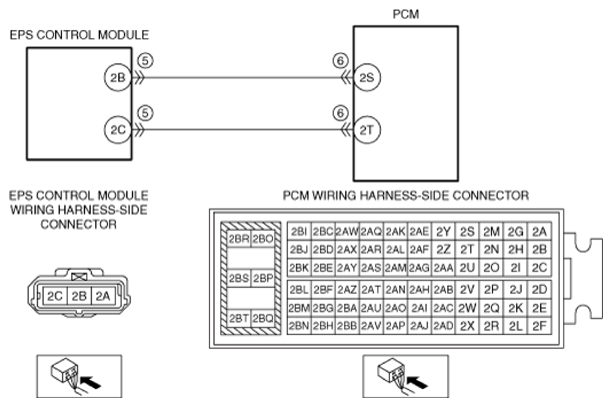

- CAN drive error (EPS control module or PCM)
- CAN communication line malfunction between EPS control module and PCM
- EPS control module terminal 2B-PCM terminal 2S
- EPS control module terminal 2C-PCM terminal 2T
- EPS control module connector or terminals malfunction
- PCM connector or terminals malfunction
- EPS control module malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
