Joint Pipe Installation Note

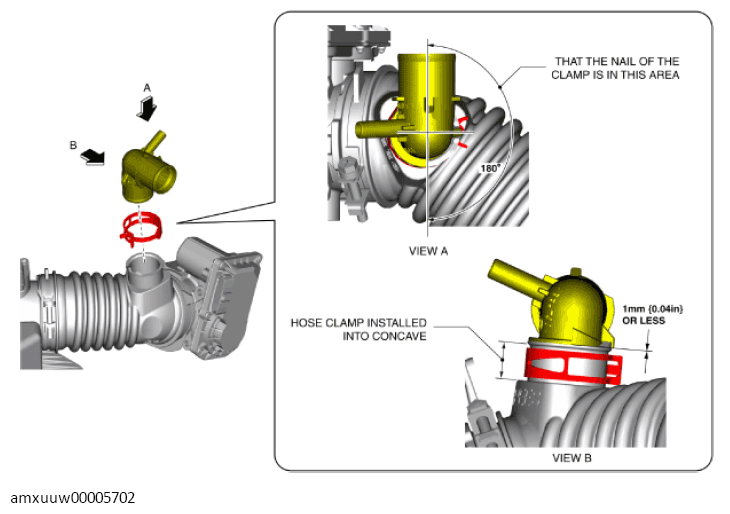

  1. Install the joint pipe as shown in the figure.
    G11274496Courtesy of MAZDA MOTORS CORP.
