Intake Manifold Removal Note

  1. Remove the following parts:
    1. Seal cover (See SEAL COVER REMOVAL/INSTALLATION .)
    2. Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
    3. Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
    4. Front wheel and tire (See GENERAL PROCEDURES (SUSPENSION) .)
    5. Front splash shield No. 1 (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
    6. Front crossmember under cover (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
    7. Wiper arm and blade (See WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    8. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    9. Air box complete (See AIR BOX COMPLETE REMOVAL/INSTALLATION .)
  2. Disconnect the MAP sensor/IAT sensor No. 2 connector. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)

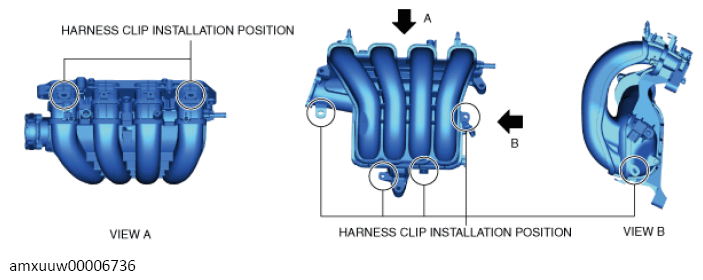

  3. Disconnect the harness clip from the intake manifold as shown in the figure.
    G13488162Courtesy of MAZDA MOTORS CORP.
  4. Remove the intake manifold.
