Timing Chain Installation Note

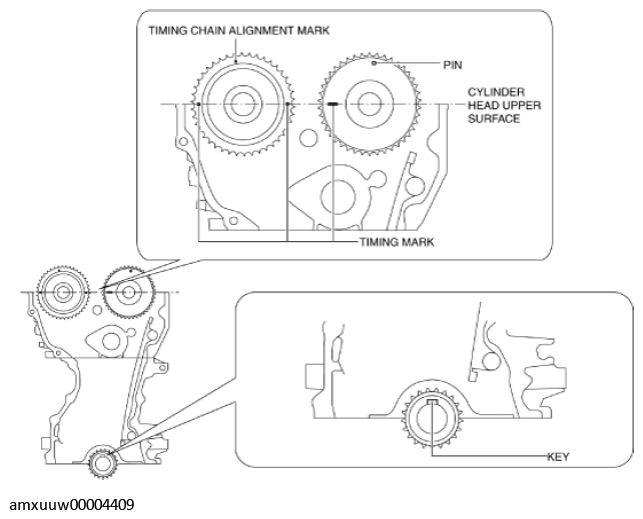

- Verify that the timing marks and the key are aligned to the position shown in the figure.
- If the timing marks and key position have deviated, align them to the positions shown in the figure.

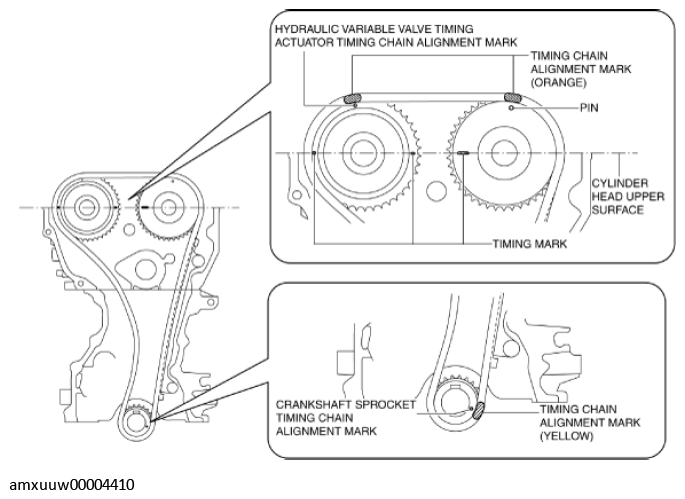

- Install the timing chain while aligning the marks on the timing chain as shown in the figure.
- Install the chain guide (No. 1).
Tightening torque
8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
- Install the tensioner arm.
- Install the chain tensioner.
Tightening torque
8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
- After installing the timing chain tensioner, remove the installed rod, and then apply tension to the timing chain.
- If a new chain tensioner is used, remove the installed lock pin.
- Verify that there is no looseness in the timing chain, and re-verify that each sprocket is in the specified location.
- Rotate the crankshaft clockwise two turns and inspect the valve timing.
