Oil Pump Driven Sprocket Removal Note

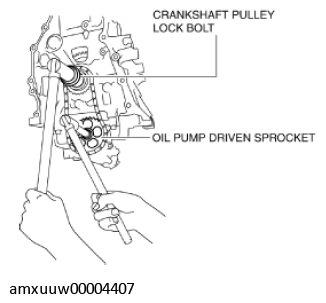

  1. Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.
    G11275898Courtesy of MAZDA MOTORS CORP.
  2. Remove the oil pump driven sprocket.
  3. Remove the temporarily assembled crankshaft pulley lock bolt.
