Engine, Transmission Removal/Installation Note

  1. Remove the bolt shown in the figure.

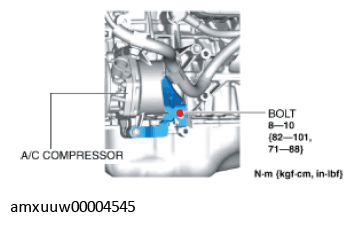

    Fig 1: A/C Compressor Bolt With Torque Specification
    G11275814Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the A/C compressor connector.
  3. Remove the A/C compressor with the cooler hose still connected and secure it using wire or rope so that it is out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION .)
    CAUTION:
    • When supporting the engine and transmission, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan, transmission to prevent the deformation of the oil pan and damage of the transmission.
  4. Secure the engine and transmission using a commercially available engine lifter.

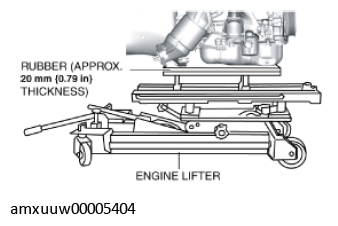

    G11275815Courtesy of MAZDA MOTORS CORP.
  5. Remove the power plant frame. (See POWER PLANT FRAME REMOVAL [M66M-D] .)
  6. Remove the SST (49 E017 5A0) from the engine.
  7. Lower the engine lifter and remove the engine, transmission.

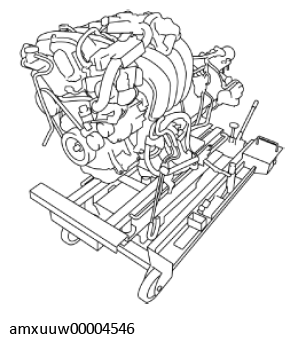

    G11275816Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
