Engine Mount (RH): Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the bolt shown in the figure and set the ground cable aside.
    Fig 1: Ground Cable, Washer Tank And Bolt With Torque Specification (RH)
    G11275771Courtesy of MAZDA MOTORS CORP.
  3. Remove the front wheels and tires (RH). (See GENERAL PROCEDURES (SUSPENSION) .)
  4. Remove the fasteners shown in the figure and slightly bend back the front mudguard No. 2 (RH).
    G11275772Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield No. 1 (RH). (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION .)
  6. Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.

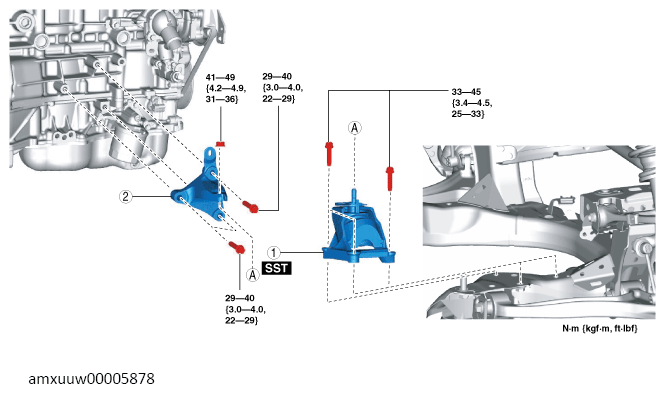

    Fig 2: Engine Mount Components With Torque Specification (RH)
    G13487922Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Engine mount rubber (RH)
    (See Engine mount rubber (RH) removal note .)
    (See Engine mount rubber (RH) installation note .)
    2 Engine mount bracket (RH)
