Oil Pan Installation Note

Completely clean and remove any oil, dirt, silicone sealant or other foreign matter that may be adhering to the cylinder block and oil pan.
When reusing the oil pan installation bolts, clean any old silicone sealant from the bolts.
CAUTION:
- Apply the silicone sealant in a single, unbroken line around the whole perimeter.
- To prevent silicone sealant from hardening, adhere the oil pan to the cylinder block within 10 min after silicone sealant is applied. Tighten the installation bolts completely soon after adhering.
- Using bolts with the old silicone sealant adhering could cause cracks in the cylinder block.
Courtesy of MAZDA MOTORS CORP.

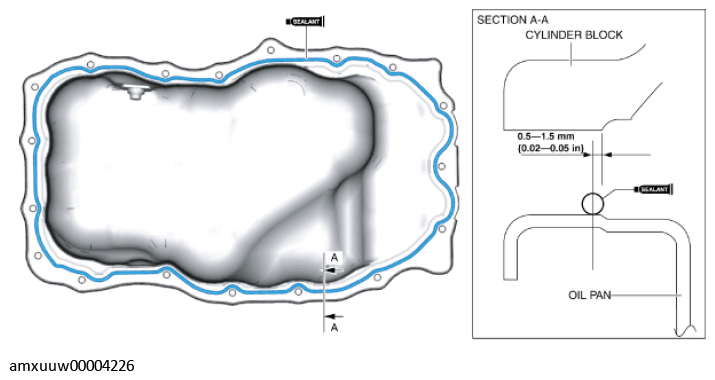

Apply silicone sealant (TB1217D or equivalent) to the oil pan along the inside of the bolt holes as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Thickness

3.0-7.0 mm {0.12-0.27 in}

Install the oil pan using the following procedure:

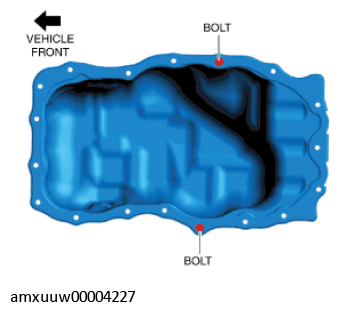

Temporarily tighten the two bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

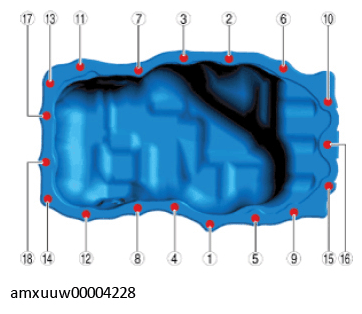

Fig 1: Oil Pan Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
