Engine Oil Solenoid Valve Installation Note

Remove sealant around the cylinder block screw holes before installing the engine oil solenoid valve.

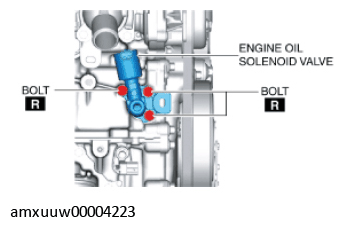

After tightening the three bolts shown in the figure, tighten the first tightened bolt to the specified tightening torque again.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- The tightening order for the three bolts is optional.
Tightening torque

12-16 N.m {123-163 kgf.cm, 107-141 in.lbf}
