Radiator Removal Note

CAUTION:

Always use two people when removing/installing the radiator, with one person supporting the radiator. Otherwise, the radiator could fall off and be damaged.

Remove the bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.
CAUTION:

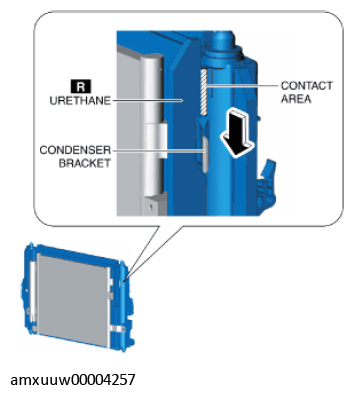

- When removing the radiator, the condenser bracket is caught on the urethane which damages the urethane. Always install new urethane after removing the radiator. (See RADIATOR INSTALLATION NOTE .)
Courtesy of MAZDA MOTORS CORP.
Remove the radiator.
If the radiator is to be reused, perform the following procedure:
1. Completely remove the urethane.
2. Clean the urethane installation surface.
