Backup Power Supply Removal/Installation

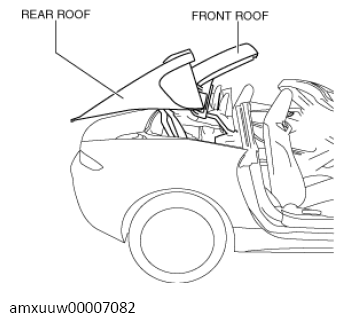

  1. Using the retractable hardtop switch, keep the rear roof open. (retractable hardtop)
    G13491703Courtesy of MAZDA MOTORS CORP.
  2. Open the convertible top. (convertible top)
  3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift lever knob (MT)
    3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    9. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
    10. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION .)
    11. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
    12. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION .)
    13. Back trim (See BACK TRIM REMOVAL/INSTALLATION .)
  5. Disconnect the connector.

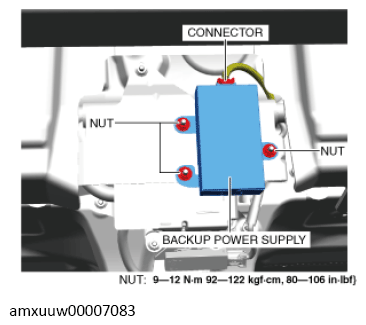

    Fig 1: Backup Power Supply Bracket, Connector And Nuts With Torque Specification
    G13491706Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts.
  7. Remove the backup power supply.
  8. Install in the reverse order of removal.
