Backup Power Supply Bracket Removal/Installation: Notes

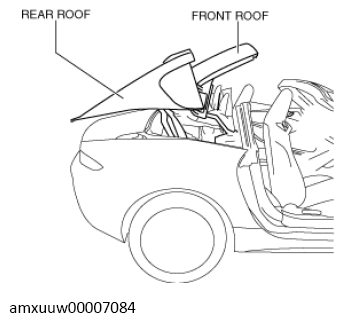

Using the retractable hardtop switch, keep the rear roof open. (retractable hardtop)

Courtesy of MAZDA MOTORS CORP.
Open the convertible top. (convertible top)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
2. Shift lever knob (MT)
3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
9. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
10. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION .)
11. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
12. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION .)
13. Back trim (See BACK TRIM REMOVAL/INSTALLATION .)
14. Backup power supply (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION .)
Remove the nuts. (See NUT INSTALLATION NOTE .)

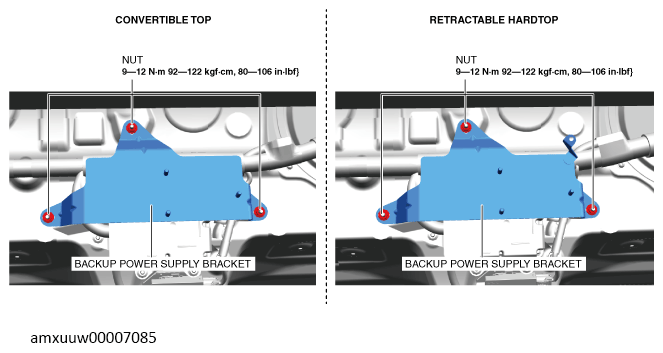

Fig 1: Backup Power Supply Bracket Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the backup power supply bracket.
Install in the reverse order of removal.
