Outer Mirror Glass Installation

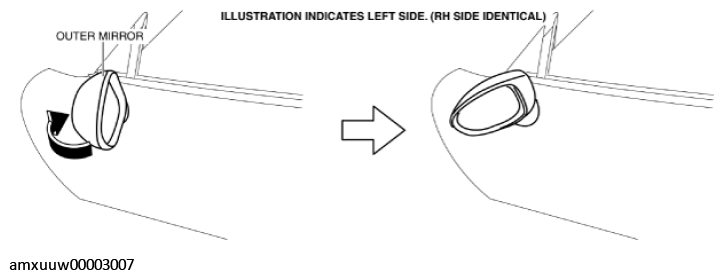

To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} deform it.
Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

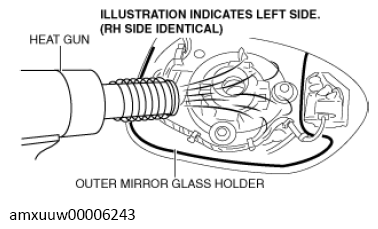

Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx. 50°C {90°F} to 60°C {108°F} using a heat gun.

Courtesy of MAZDA MOTORS CORP.
Connect the auto-dimming outer mirror connector. (with auto-dimming outer mirror)

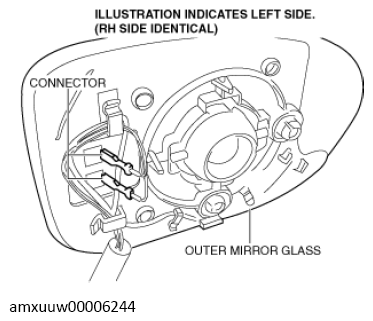

Connect the connectors (with heated outer mirror).

Courtesy of MAZDA MOTORS CORP.
Connect the connector (with blind spot monitoring (BSM) system).

Courtesy of MAZDA MOTORS CORP.

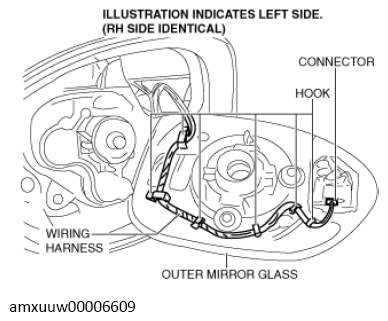

Install the wiring harness for the hooks.

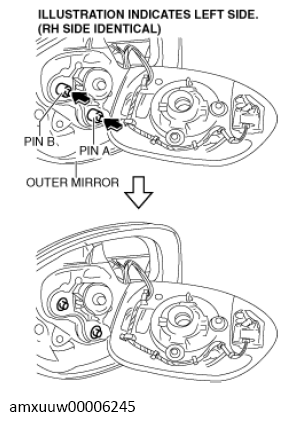

Press in outer mirror pins A and B in the direction of the arrows shown in the figure.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the outer mirror moves when installing the outer mirror glass, the stay could be damaged. When installing the outer mirror glass, use both hands to press together the outer mirror glass and outer mirror.

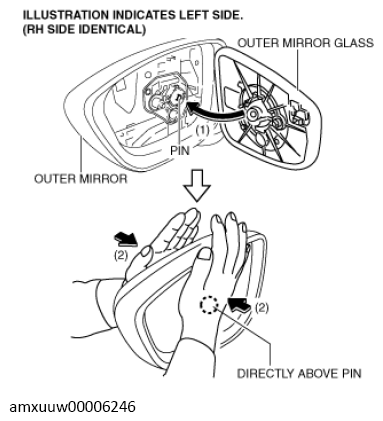

Align the outer mirror glass with the outer mirror in the direction of arrow (1) shown in the figure and while pressing in the direction of arrows (2), install the pin.

Courtesy of MAZDA MOTORS CORP.

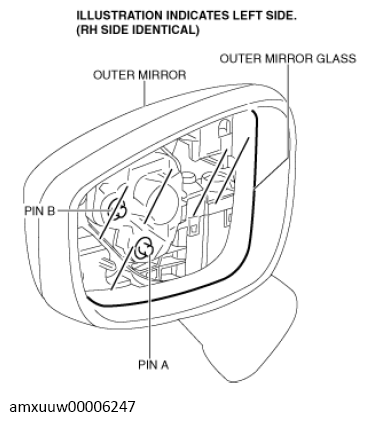

Install pins A and B in the same way as in Step 6.

Courtesy of MAZDA MOTORS CORP.
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
