Door Quarter Glass Removal/Installation: Installation

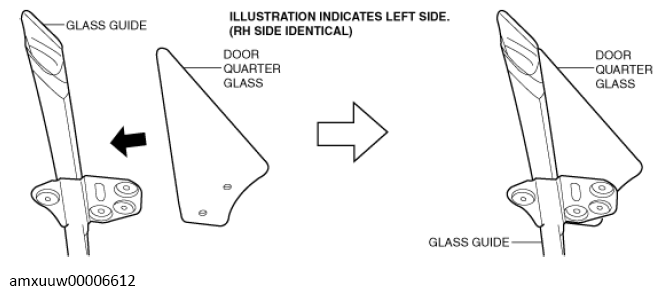

Move the door quarter glass in the direction of the arrow shown in the figure and press it into the glass guide.

Courtesy of MAZDA MOTORS CORP.

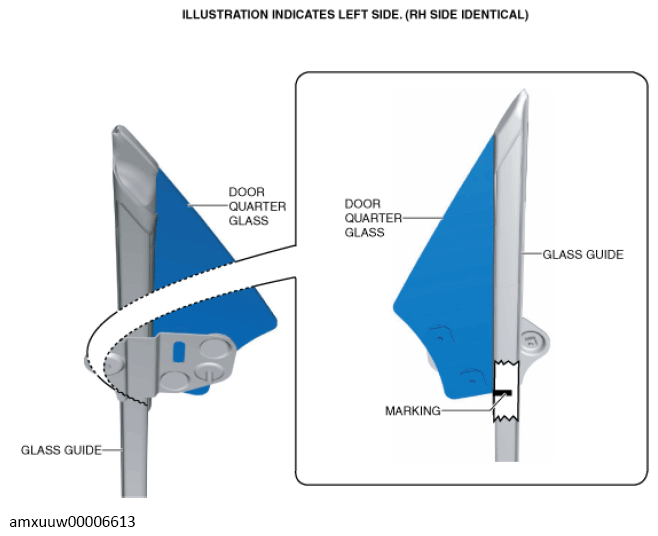

Align the door quarter glass lower end with the marking shown in the figure.

Courtesy of MAZDA MOTORS CORP.

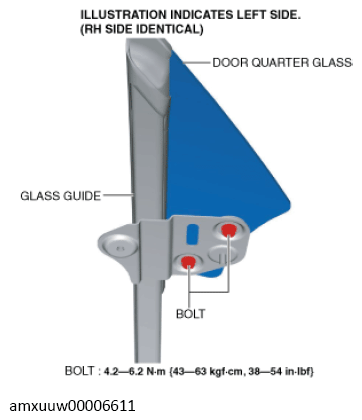

Install the bolts.

Fig 1: Door Quarter Glass, Glass Guide And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

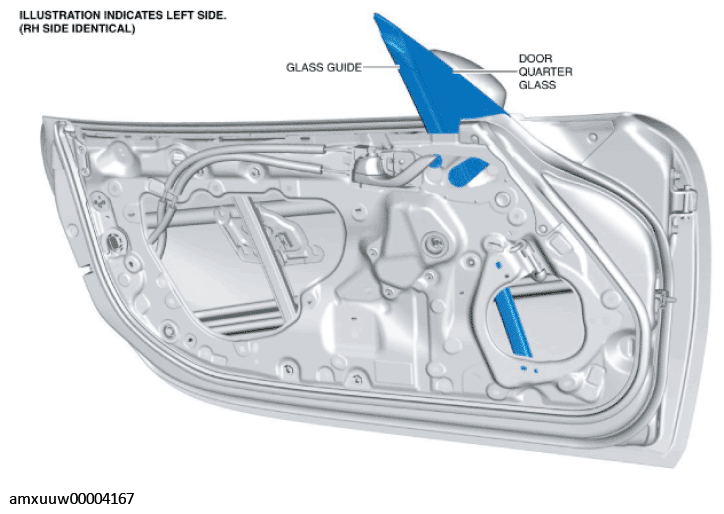

Insert the door quarter glass and the glass guide as a single unit into the door panel. (See GLASS GUIDE INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.

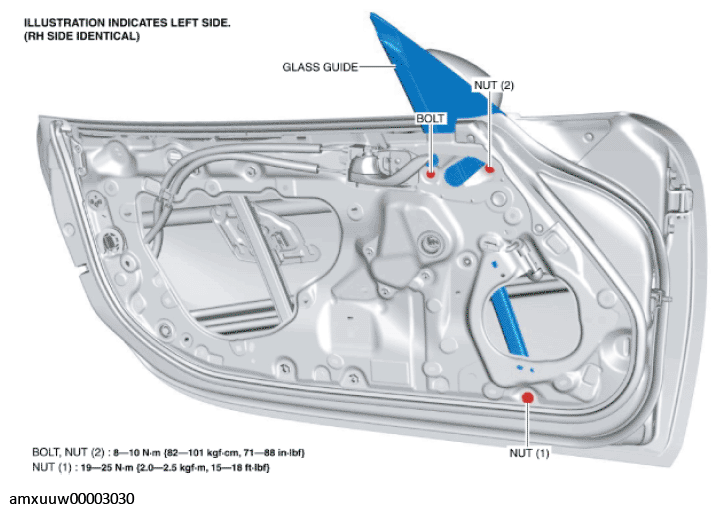

Install the bolt.

Fig 2: Glass Guide Nuts And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install nut (2).
Install nut (1).

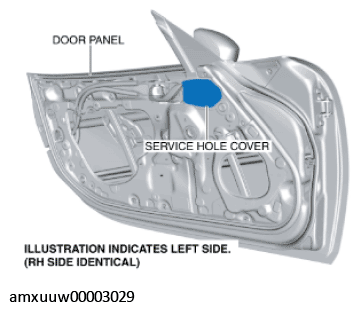

Install the service hole cover.

Courtesy of MAZDA MOTORS CORP.
Install the following parts:
1. Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION .)
2. Door glass (See DOOR GLASS REMOVAL/INSTALLATION .)
3. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
4. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
