Door Glass Removal/Installation: Installation

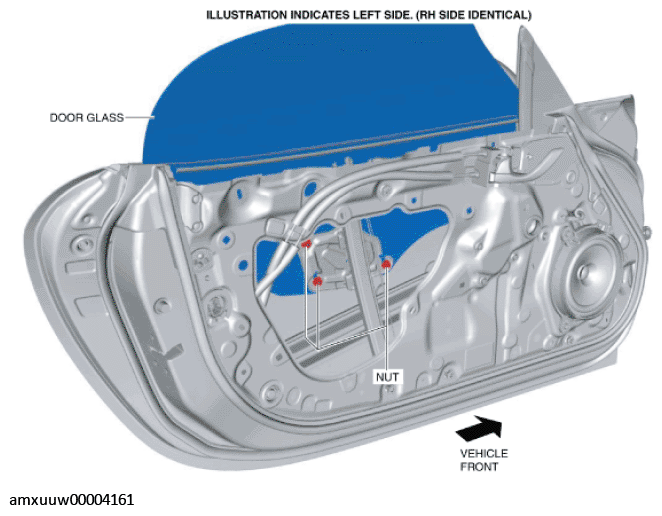

  1. Set the door glass to the carrier plate and temporarily tighten the nuts.
    G11275079Courtesy of MAZDA MOTORS CORP.
  2. Connect the power window main switch connector or power window subswitch connector.
  3. Disconnect the pressure sensor connector. (with pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  4. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  5. Operate the power window main switch or power window subswitch to fully close the door glass.

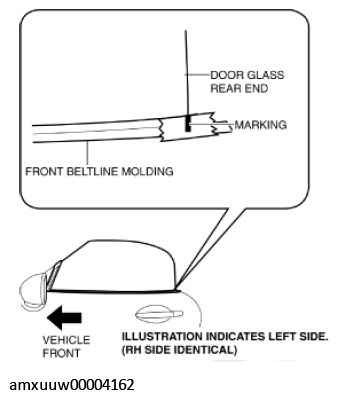

  6. Align the position of the door glass rear end with the marking shown in the figure.
    G11275080Courtesy of MAZDA MOTORS CORP.

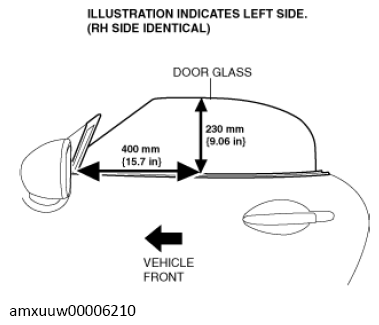

  7. Operate the power window main switch or power window subswitch to adjust the door glass to the position shown in the figure.
    G13490559Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  9. Disconnect the power window main switch connector or power window subswitch connector.
  10. Connect the pressure sensor connector. (with pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  11. Completely tighten the nuts.

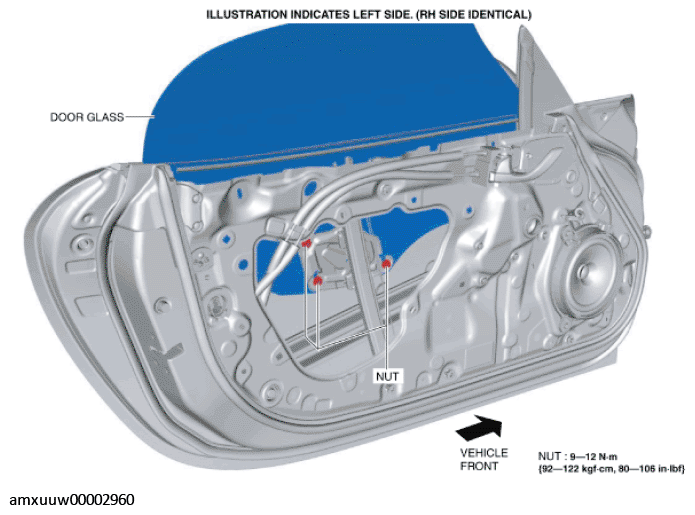

    Fig 1: Door Glass Nuts With Torque Specification
    G11275082Courtesy of MAZDA MOTORS CORP.

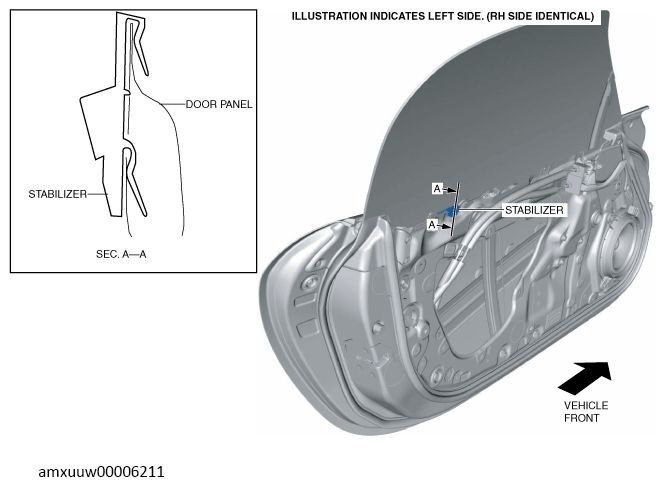

  12. Install the stabilizer.
    G13490561Courtesy of MAZDA MOTORS CORP.
  13. Install the door module panel. (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
  14. Install the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  15. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  16. Close the convertible top and secure the top lock. (convertible top)
  17. Using the retractable hardtop switch, fully close the front roof. (retractable hardtop)
  18. Close the door.
  19. Operate the power window main switch or power window subswitch and verify that the door glass moves up/down smoothly.
    • If the door glass does not move up/down smoothly, adjust the door glass position. (See DOOR GLASS ADJUSTMENT .)
  20. Perform the power window system initial setting. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
