Auto-Dimming Rearview Mirror Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

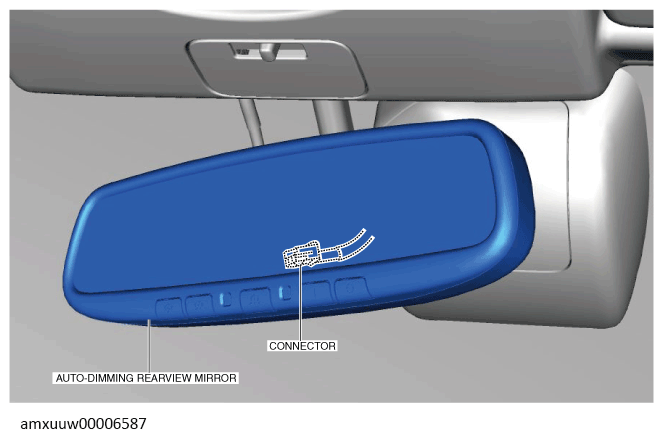

  2. Disconnect the connector.
    G13490544Courtesy of MAZDA MOTORS CORP.

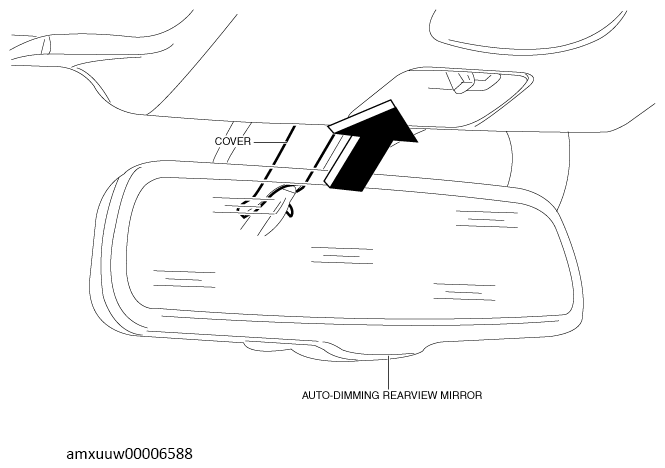

  3. Remove the cover in the direction of the arrow shown in the figure.
    G13490545Courtesy of MAZDA MOTORS CORP.

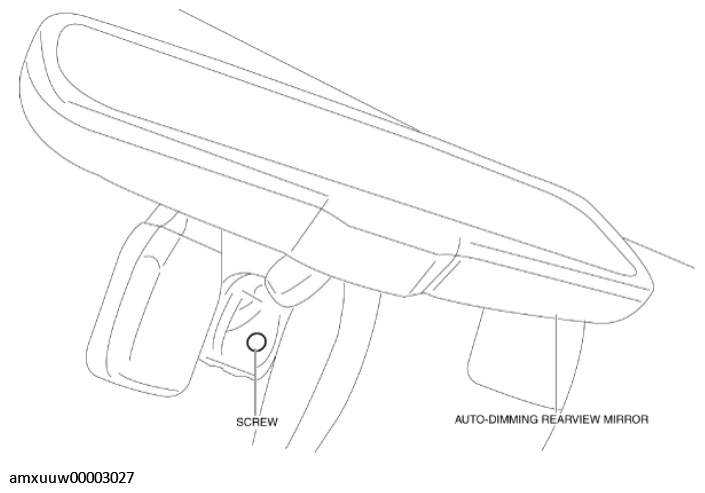

  4. Loosen the screw.
    G11275068Courtesy of MAZDA MOTORS CORP.

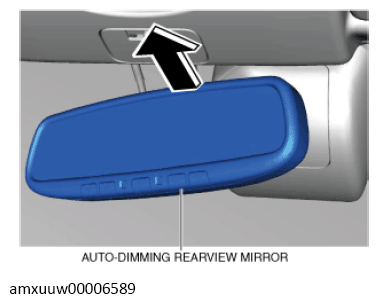

  5. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.
    G13490547Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
