Shift Panel Disassembly/Assembly

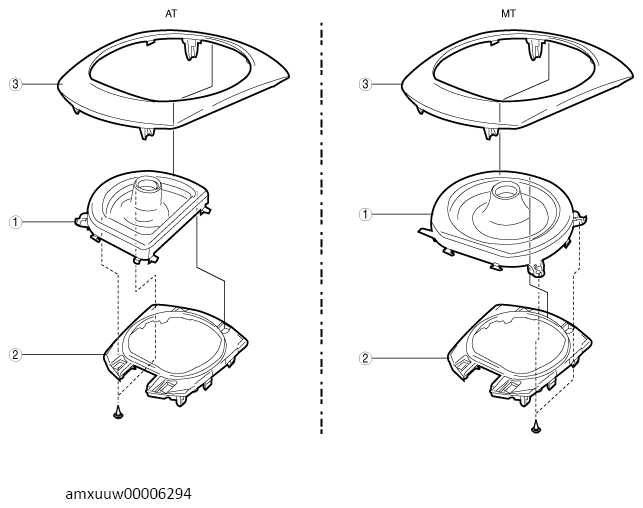

  1. Disassemble in the order indicated in the table.
    G13491342Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Boot
    2 Shift boot panel
    3 Indicator panel
  2. Remove the indicator when replacing the shift panel. (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Assemble in the reverse order of disassembly.
