Rear Console Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

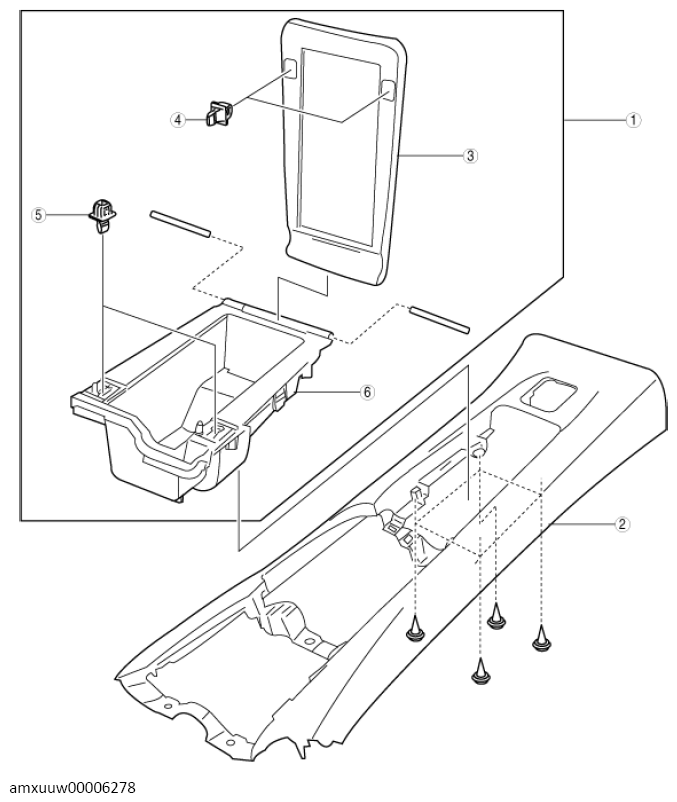

    G13491318Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Rear console box component
    2 Rear console
    3 Rear console lid
    4 Latch
    5 Striker
    6 Rear console box
  2. Assemble in the reverse order of disassembly.
