Meter Hood Disassembly/Assembly

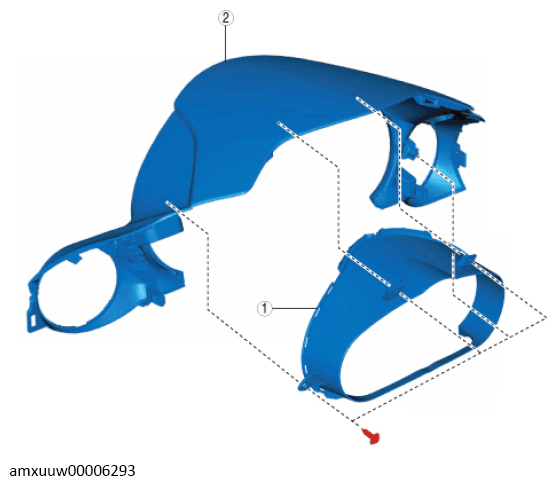

  1. Disassemble in the order indicated in the table.
    G13491304Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Meter cover
    2 Meter hood
  2. When replacing the meter hood, remove the following parts:
    1. Microphone (See MICROPHONE REMOVAL/INSTALLATION .)
    2. Center ventilator grille No. 2 (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
    3. Side ventilator grille No. 1 (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
  3. Assemble in the reverse order of disassembly.
