Front Header Trim Removal/Installation: Notes

  1. Using the retractable hardtop switch, keep the front roof half-open. (retractable hardtop)
    G11274780Courtesy of MAZDA MOTORS CORP.
  2. Open the convertible top. (convertible top)
  3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
  5. Remove the female wedge. (See FEMALE WEDGE REMOVAL/INSTALLATION .)
  6. Remove the screws.

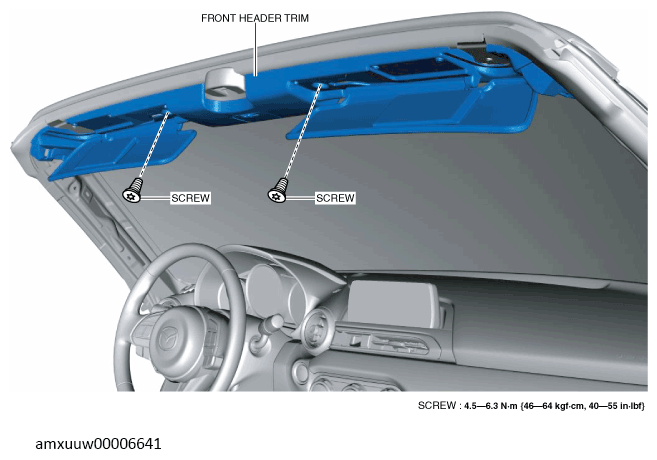

    Fig 1: Front Header Trim Screws With Torque Specification
    G13491288Courtesy of MAZDA MOTORS CORP.

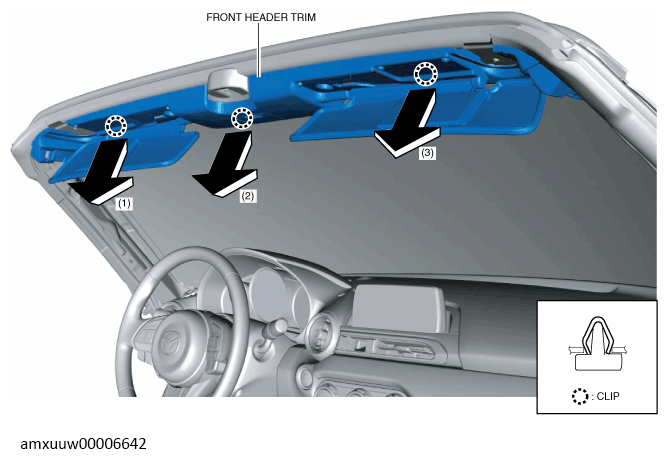

  7. Move the front header trim in the order of arrows (1), (2) and (3) shown in the figure and remove it while detaching the clips.
    G13491289Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the map light connector.
  9. Remove the map light when replacing the front header trim. (See MAP LIGHT REMOVAL/INSTALLATION .)
  10. Install in the reverse order of removal. (See FRONT HEADER TRIM INSTALLATION NOTE .)
