Back Trim Removal/Installation: Notes

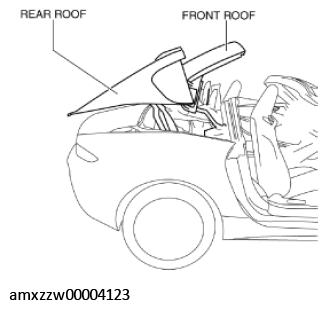

  1. Using the retractable hardtop switch, keep the front roof half-open. (retractable hardtop)
    G11274780Courtesy of MAZDA MOTORS CORP.
  2. Open the convertible top. (convertible top)
  3. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift lever knob (MT)
    3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
    8. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    9. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
    10. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION .)
    11. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
    12. Roof hook lever (See ROOF HOOK REMOVAL/INSTALLATION .)

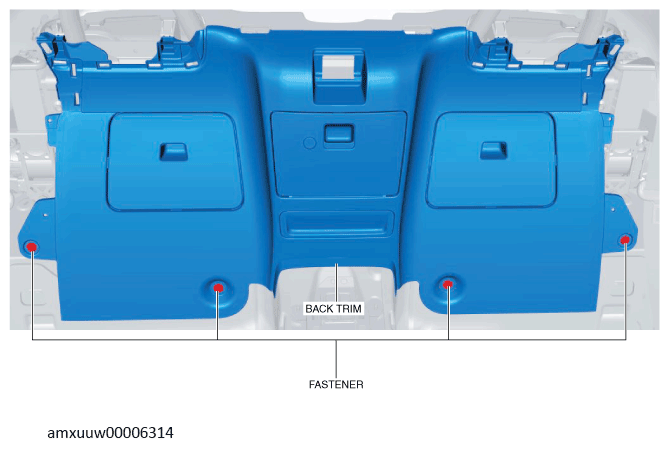

  5. Remove the fasteners.
    G13491216Courtesy of MAZDA MOTORS CORP.

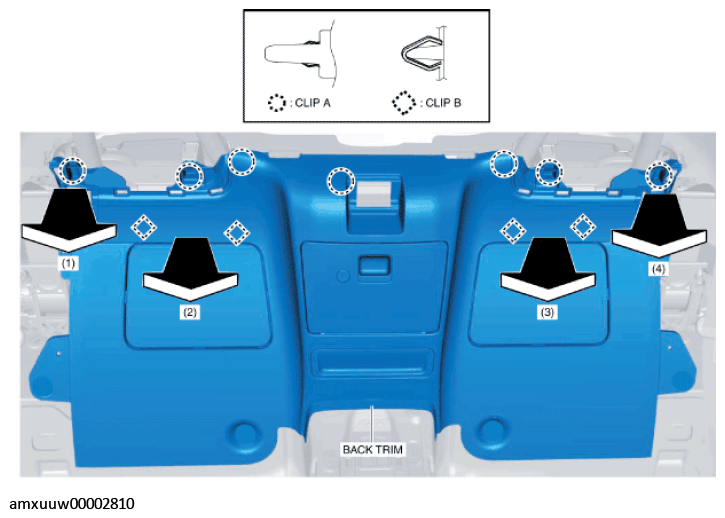

  6. Move the back trim in the order of arrows (1), (2), (3) and (4) while detaching clips A and B using the fastener remover and remove the back trim.
    G11275210Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal. (See BACK TRIM INSTALLATION NOTE .)
