Convertible Top Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

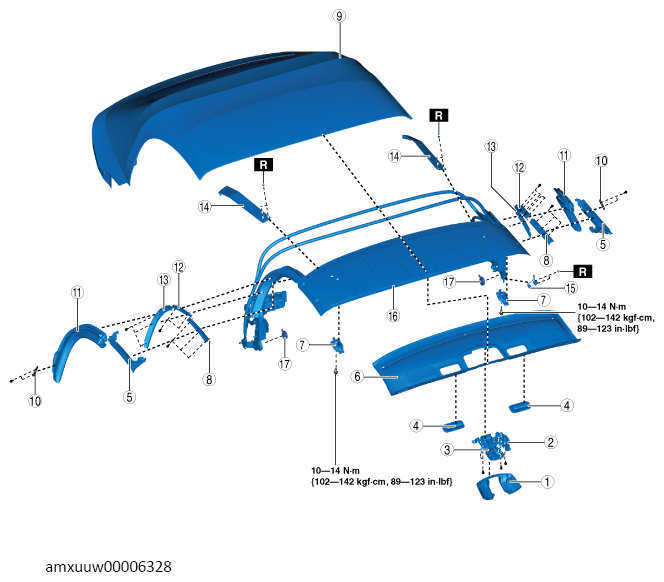

    Fig 1: Convertible Top Components With Torque Specification
    G13490918Courtesy of MAZDA MOTORS CORP.
    G13490918Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
