Driver's Side

Fully close the door glass.
Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Door trim (See DOOR TRIM REMOVAL/INSTALLATION .)
2. Door module panel (See DOOR MODULE PANEL REMOVAL/INSTALLATION .)
3. Door key cylinder (See DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
4. Outer handle (See OUTER HANDLE REMOVAL/INSTALLATION .)

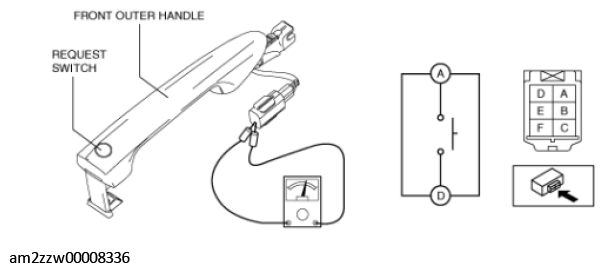

Verify that the continuity is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the outer handle. (See OUTER HANDLE REMOVAL/INSTALLATION .)
