Inner Handle Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)

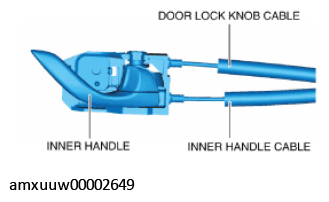

  3. Disconnect the door lock knob cable and the inner handle cable from the inner handle.
    G11273511Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
