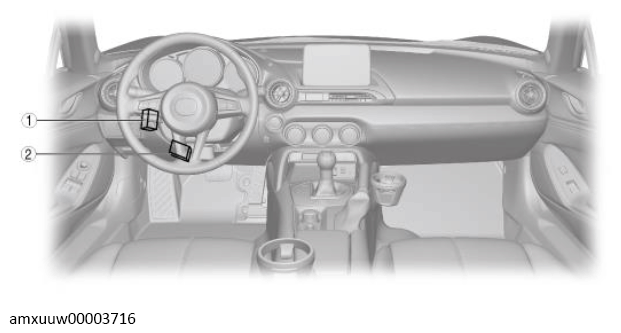

Control System Location Index

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .) (See BODY CONTROL MODULE (BCM) INSPECTION .) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION .) (See BODY CONTROL MODULE (BCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	ELECTRICAL SUPPLY UNIT (ESU) (See ELECTRICAL SUPPLY UNIT (ESU) REMOVAL/INSTALLATION .) (See ELECTRICAL SUPPLY UNIT (ESU) INSPECTION .) (See ELECTRICAL SUPPLY UNIT (ESU) BRACKET REMOVAL/INSTALLATION .)
