Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

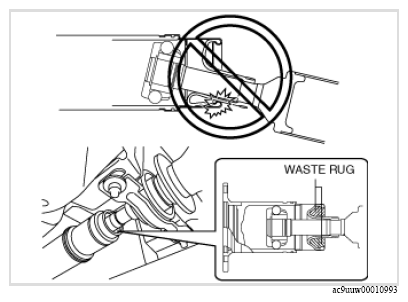

If the constant velocity joint is bent during propeller shaft removal/installation or transportation after servicing, the constant velocity joint boot may contact the metallic cover and the boot may be damaged. Insert a rag between the boot and the metallic cover before servicing to protect the boot.

Courtesy of MAZDA MOTORS CORP.

Remove the following parts.
1. Floor under cover No. 2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
2. Floor under cover No. 1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
3. Brace bar

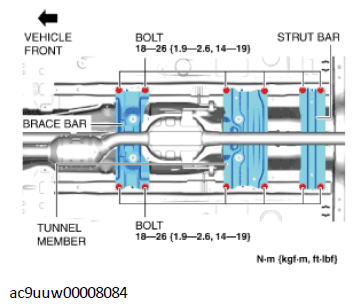

  Fig 1: Tunnel Member, Brace Bar, Strut Bar And Bolts With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
4. Tunnel member
5. Strut bar
6. HO2S harness bracket

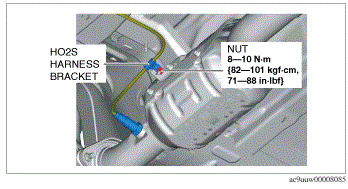

  Fig 2: HO2S Harness Bracket Nut With Torque Specification
  Courtesy of MAZDA MOTORS CORP.

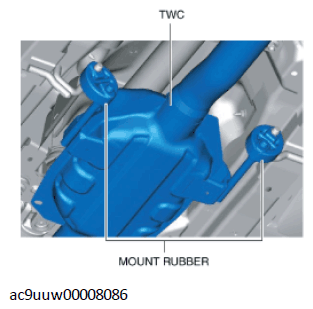

Remove the TWC from the mount rubber.

Courtesy of MAZDA MOTORS CORP.
Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)

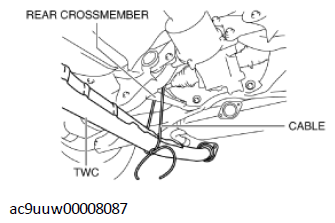

Suspend the TWC using a cable as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figure.
Install in the reverse order of removal.
Perform a road test and verify that there is no abnormal vibration or noise.

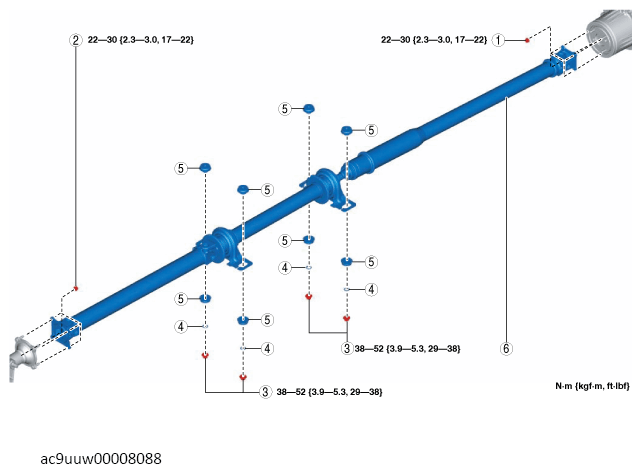

Fig 3: Propeller Shaft Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Nut (rear)
2	Nut (front)
3	Nut (center bearing support)
4	Washer
5	Bush, spacer
6	Propeller shaft) See PROPELLER SHAFT REMOVAL NOTE .) (See PROPELLER SHAFT INSTALLATION NOTE .)
