DTC P1888-11/P1888-15: Differential Oil Temperature Sensor [AWD Control Module]: Notes

DTC P1888:11/P1888:15 (AWD CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P1888:11	Differential oil temperature sensor
DTC P1888:15
DETECTION CONDITION	P1888:11 Short to ground is detected in differential oil temperature sensor circuit P1888:15 Short to battery or open circuit is detected in differential oil temperature sensor circuit
FAIL-SAFE FUNCTION	Refer to "Fail-safe function table". (See DTC TABLE [AWD CONTROL MODULE] .)

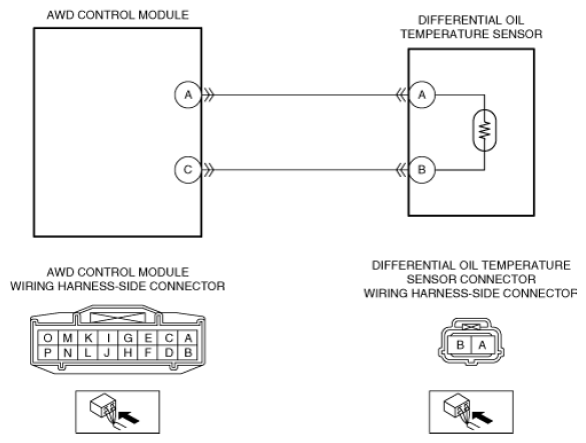

POSSIBLE CAUSE	Differential oil temperature sensor malfunction Open or short to power or ground circuit in wiring harness between AWD control module terminal A and differential oil temperature sensor terminal A Open or short to power circuit in wiring harness between AWD control module terminal C and differential oil temperature sensor terminal B AWD control module malfunction Poor connection at each connector
Courtesy of MAZDA MOTORS CORP.
