Vacuum Pump Removal/Installation: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
- Air hose
- Air cleaner cover
- Air cleaner element
- Fresh-air duct
- Air cleaner case
- Air inlet pipe
Remove the battery. (See BATTERY REMOVAL/INSTALLATION .)
Remove the bolts and nut A.

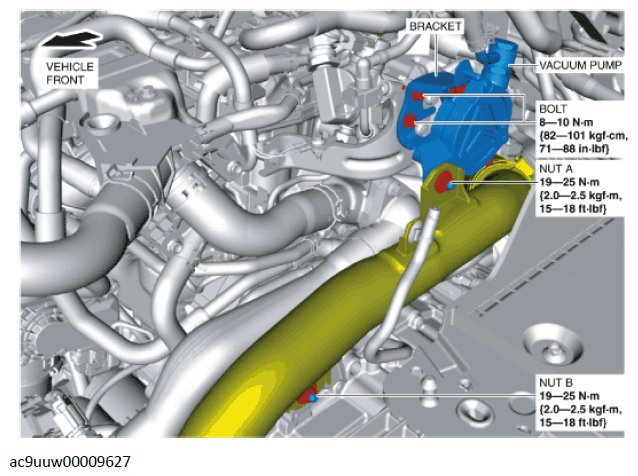

Fig 1: Locating Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.
Remove nut B.
Pinch open the clamps using pliers and disconnect the vacuum hoses from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION .)
Remove in the order shown in the table.
Install in the reverse order of removal.

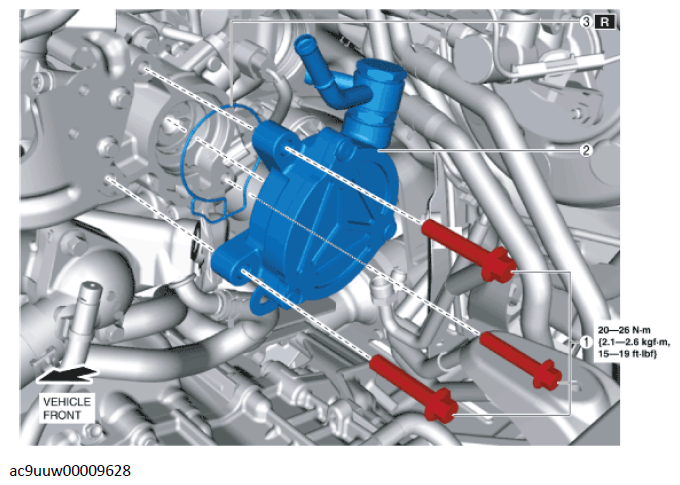

Fig 2: Removing Vacuum Pump Bolts

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Vacuum pump (See Vacuum Pump Removal Note .) (See Vacuum Pump and O-ring Installation Note .)
3	O-ring (See Vacuum Pump and O-ring Installation Note .)
