Rod Adjustment Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Install the plate as shown in the figure and verify that the clearance between the rod end and the plate is within the standard.

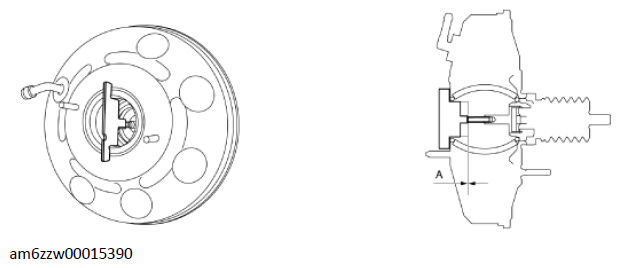

Fig 1: Checking Clearance Between Rod End And Plate

Courtesy of MAZDA MOTORS CORP.

Standard A

0 mm {0 in}

If not within the standard, adjust the rod position using the following procedure.

Install the SST as shown in the figure.

Fig 2: Installing SST
Courtesy of MAZDA MOTORS CORP.

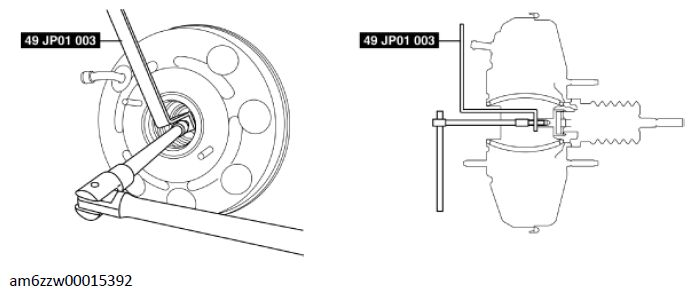

Rotate the socket wrench in either direction with the SST secured to adjust the rod position.

NOTE:

When the socket wrench is rotated clockwise as viewed from the front of the vehicle, the rod moves towards the rear of the vehicle.
When the socket wrench is rotated counterclockwise as viewed from the front of the vehicle, the rod moves towards the front of the vehicle.
The rod moves back and forth approx. 1 mm for each rotation.

Fig 3: Adjusting Rod Position Using SST

Courtesy of MAZDA MOTORS CORP.
