Front Inner Handle

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the door lock knob cable and the inner handle cable from the front inner handle.

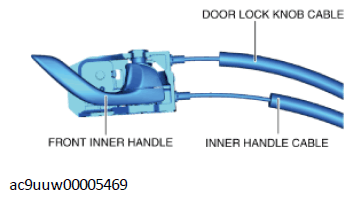

    Fig 1: Front Inner Handle And Door Lock Knob Cable
    G11432718Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
