Water Hose: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]
.)
- Air cleaner cover
- Air cleaner element
- Fresh-air duct
- Air cleaner case
- Air hose
- Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T] .)

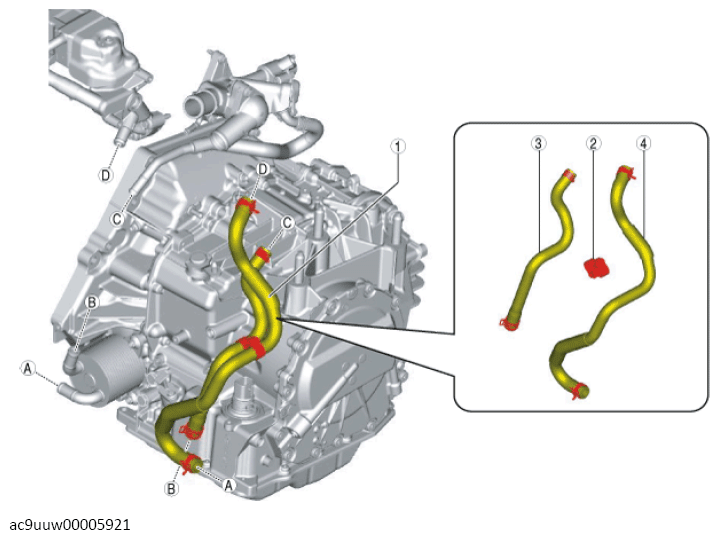

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T]
.)PART DESCRIPTION
1 Water hose component
(See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
(See Water hose No. 1 (water pipe side) installation note .)
(See Water hose No. 2 (water pipe side) installation note .)2 Hose clip 3 Water hose No. 1
(See Water hose No. 1 (water pipe side) installation note .)
(See Water hose No. 1 and No. 2 (oil cooler side) installation note .)4 Water hose No. 2
(See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
(See Water hose No. 2 (water pipe side) installation note .)
