Electric Parking Brake Control Module Inspection
- Disconnect the electric parking brake control module connector. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)

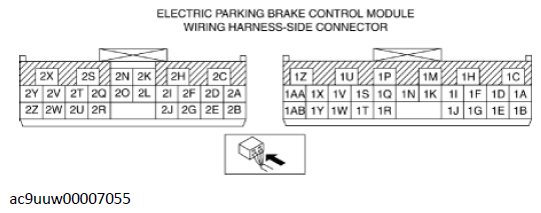

- Attach the tester lead to the electric parking brake control module wiring harness-side connector and inspect voltage or continuity according to the Terminal Voltage Table (Reference) on the table.
- If not specified, replace the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
Terminal Voltage Table (Reference)
| Terminal | Connected to | Test condition | Specification | Inspection item(s) |
|---|---|---|---|---|
| 1A | - | - | - | - |
| 1B | - | - | - | - |
| 1C | Battery | Under any condition | B+ |
|
| 1D | - | - | - | - |
| 1E | - | - | - | - |
| 1F | - | - | - | - |
| 1G | - | - | - | - |
| 1H | Battery | Under any condition | B+ |
|
| 1I | - | - | - | - |
| 1J | - | - | - | - |
| 1K | - | - | - | - |
| 1M | Electric parking brake motor gear unit (RH) | Electric parking brake switch is in neutral position | 6.0-7.0 V |
|
| Electric parking brake is releasing while electric parking brake switch is pushed down | B+ | |||
| Electric parking brake is applying while electric parking brake switch is pulled up | 1.0 V or less | |||
| 1N | - | - | - | - |
| 1P | Electric parking brake motor gear unit (RH) | Electric parking brake switch is in neutral position | 6.0-7.0 V |
|
| Electric parking brake is releasing while electric parking brake switch is pushed down | 1.0 V or less | |||
| Electric parking brake is applying while electric parking brake switch is pulled up | B+ | |||
| 1Q | - | - | - | - |
| 1R | Indicator light built into electric parking brake switch | Indicator light off | 1.0 V or less |
|
| Indicator light on | 0 V | |||
| 1S | - | - | - | - |
| 1T | - | - | - | - |
| 1U | Electric parking brake motor gear unit (LH) | Electric parking brake switch is in neutral position | 6.0-7.0 V |
|
| Electric parking brake is releasing while electric parking brake switch is pushed down | 1.0 V or less | |||
| Electric parking brake is applying while electric parking brake switch is pulled up | B+ | |||
| 1V | - | - | - | - |
| 1W | Electric parking brake switch | Electric parking brake switch is in neutral position | 4.3 V |
|
| Electric parking brake switch is pushed down | 4.3 V | |||
| Electric parking brake switch is pulled up | 4.3 V | |||
| 1X | - | - | - | - |
| 1Y | - | - | - | - |
| 1Z | Electric parking brake motor gear unit (LH) | Electric parking brake switch is in neutral position | 6.0-7.0 V |
|
| Electric parking brake is releasing while electric parking brake switch is pushed down | B+ | |||
| Electric parking brake is applying while electric parking brake switch is pulled up | 1.0 V or less | |||
| 1AA | - | - | - | - |
| 1AB | IG 1 relay | Ignition OFF | 1.0 V or less |
|
| Ignition ON | B+ | |||
| 2A | - | - | - | - |
| 2B | - | - | - | - |
| 2C | Ground point | Under any condition | 1.0 V or less |
|
| 2D | - | - | - | - |
| 2E | - | - | - | - |
| 2F | CAN related module | Because this terminal is for communication, determination using terminal voltage inspection is not possible. Perform the inspection using the DTC inspection. | ||
| 2G | CAN related module | Because this terminal is for communication, determination using terminal voltage inspection is not possible. Perform the inspection using the DTC inspection. | ||
| 2H | Ground point | Under any condition | 1.0 V or less |
|
| 2I | - | - | - | - |
| 2J | - | - | - | - |
| 2K | Electric parking brake switch | Electric parking brake switch is in neutral position | 2.4 V |
|
| Electric parking brake switch is pushed down | 2.4 V | |||
| Electric parking brake switch is pulled up | 2.3 V | |||
| 2L | Electric parking brake switch | Electric parking brake switch is in neutral position | 3.1 V |
|
| Electric parking brake switch is pushed down | 1.2 V | |||
| Electric parking brake switch is pulled up | 1.9 V | |||
| 2N | - | - | - | - |
| 2O | - | - | - | - |
| 2Q | Electric parking brake switch | Electric parking brake switch is in neutral position | 1.2 V |
|
| Electric parking brake switch is pushed down | 3.1 V | |||
| Electric parking brake switch is pulled up | 3.7 V | |||
| 2R | - | - | - | - |
| 2S | - | - | - | - |
| 2T | - | - | - | - |
| 2U | - | - | - | - |
| 2V | - | - | - | - |
| 2W | - | - | - | - |
| 2X | - | - | - | - |
| 2Y | - | - | - | - |
| 2Z | - | - | - | - |
