Foot-Motion Detection Unit Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    2. Rear splash shield (See REAR SPLASH SHIELD REMOVAL/INSTALLATION .)
    3. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
  3. Remove the screws.

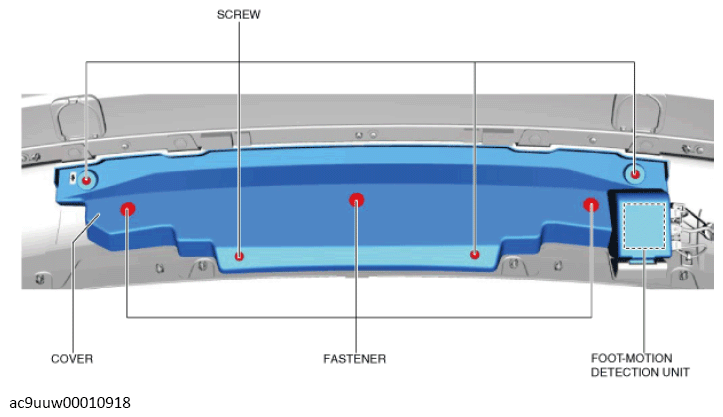

    G13450329Courtesy of MAZDA MOTORS CORP.
  4. Remove the fasteners.
  5. Remove the cover.
  6. Disconnect the connectors.

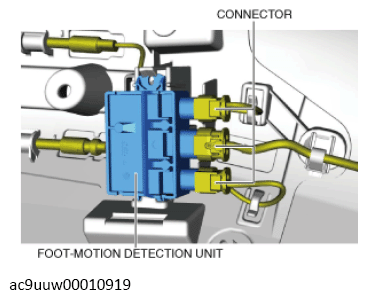

    G13450330Courtesy of MAZDA MOTORS CORP.
  7. Detach the tab shown in the figure.

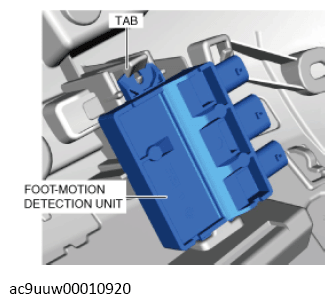

    G13450331Courtesy of MAZDA MOTORS CORP.
  8. Remove the foot-motion detection unit.
  9. Install in the reverse order of removal.
