Front A/C Unit Disassembly/Assembly
>>
Front Air Mix Link Assembly Note
Front Air Mix Link Assembly Note

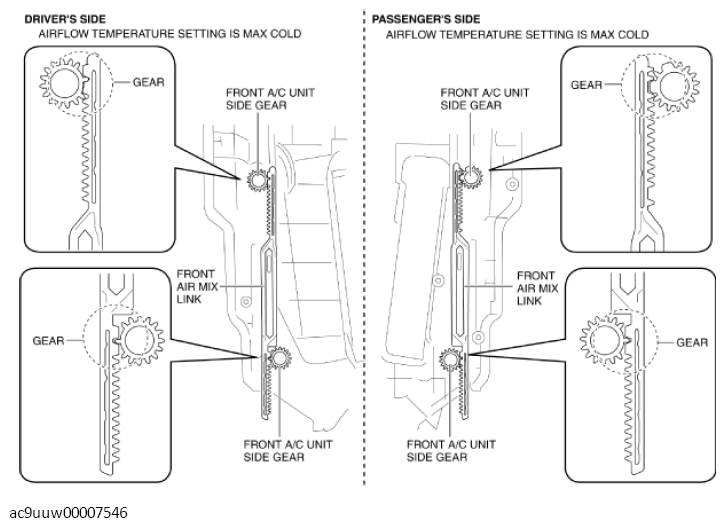

Align the positions of the front A/C unit side gears with the positions of the front air mix link gears as shown in the figure.
