Blower Unit Disassembly/Assembly: Notes
CAUTION:
- Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

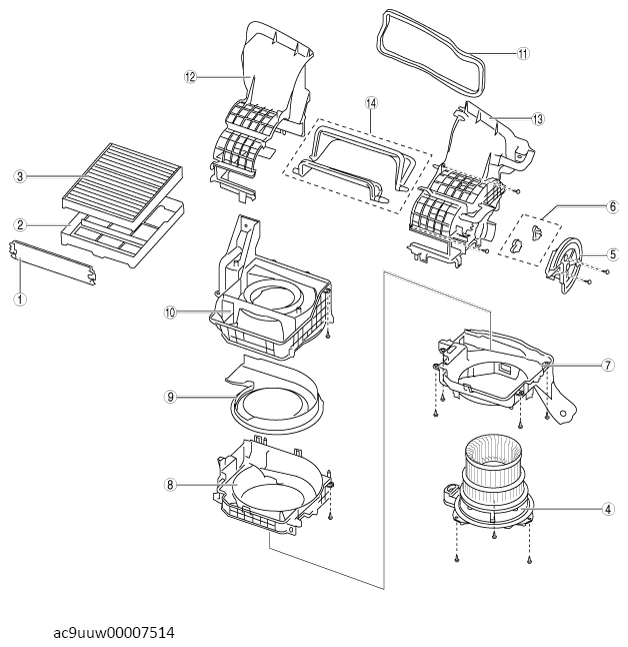

- Disassemble in the order indicated in the table.PART DESCRIPTION
1 Cover 2 Air filter case 3 Air filter 4 Front blower motor 5 Air intake actuator 6 Air intake link (See Air Intake Link Installation Note .) 7 Blower case F 8 Blower case E 9 Blower case D 10 Blower case C 11 Adhesive polyurethane 12 Blower case B 13 Blower case A 14 Air intake door - Assemble in the reverse order of disassembly.
