Rear Differential Mount Rubber Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)

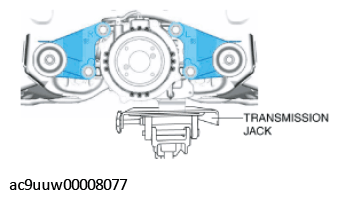

Support the rear differential component using a transmission jack.

Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the rear crossmember and rear differential mount rubber as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Remove the rear differential mount rubber.

Fig 1: Rear Differential Mount Rubber Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See REAR DIFFERENTIAL MOUNT RUBBER, BOLT INSTALLATION NOTE .)
