No. 9 Auto Hold Does Not Work: Notes
NO. 9 AUTO HOLD DOES NOT WORK (DYNAMIC STABILITY CONTROL) POSSIBLE CAUSE
| 9 |
AUTOHOLD does not work |
| POSSIBLE CAUSE |
- Stuck AUTOHOLD switch in off position

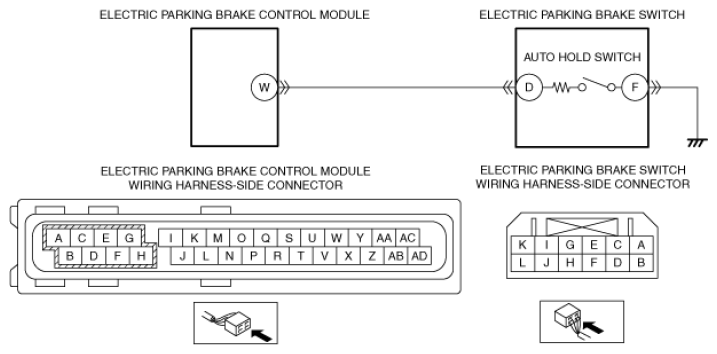

- Open circuit in wiring harness between electric parking brake switch terminal F and body ground
- Open circuit in wiring harness between electric parking brake control module terminal W and electric parking brake switch terminal D
|
 Courtesy of MAZDA MOTORS CORP.
|
