Driver-side Second-row Seat Back Frame

  1. Disassemble in the order indicated in the table.

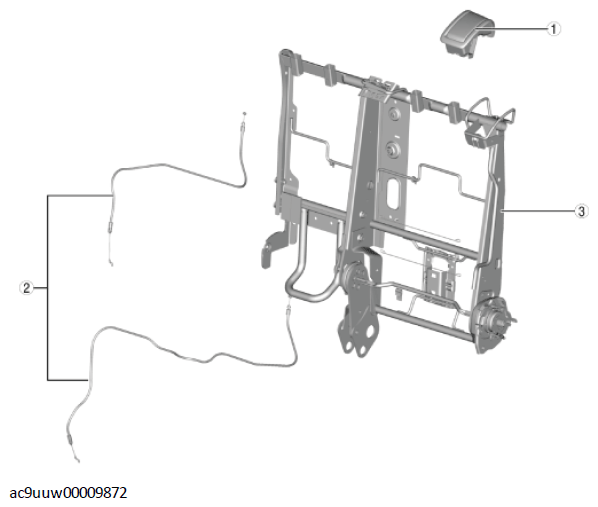

    G11432546Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Walk in lever
    2 Cable
    3 Second-row seat back frame
  2. Assemble in the reverse order of disassembly.
