Liftgate Lock Striker Removal/Installation: Notes

  1. Pull the lock bezel in the direction of the arrow shown in the figure and detach the lock bezel tabs A, and B from the trunk end trim.
    G11432750Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolts.

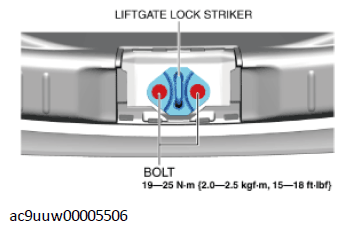

    Fig 1: Liftgate Lock Striker Bolts With Torque Specification
    G11432751Courtesy of MAZDA MOTORS CORP.
  3. Remove the liftgate lock striker. (See LIFTGATE LOCK STRIKER INSTALLATION NOTE .)
  4. Install in the reverse order of removal.
