Second-Row Seat Back Frame Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
    2. Second-row seat cushion (See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Second-row seat side cover (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .)
    4. Second-row center buckle (See SECOND-ROW BUCKLE REMOVAL/INSTALLATION .)
    5. Second-row seat back component (See SECOND-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
  3. Remove the armrest hinge cover.

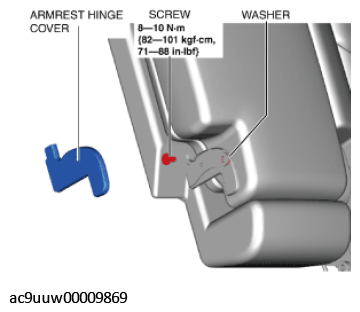

    Fig 1: Armrest Hinge Cover, Washer And Screw With Torque Specifications
    G11432548Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw and washer.
  5. Remove the screw.

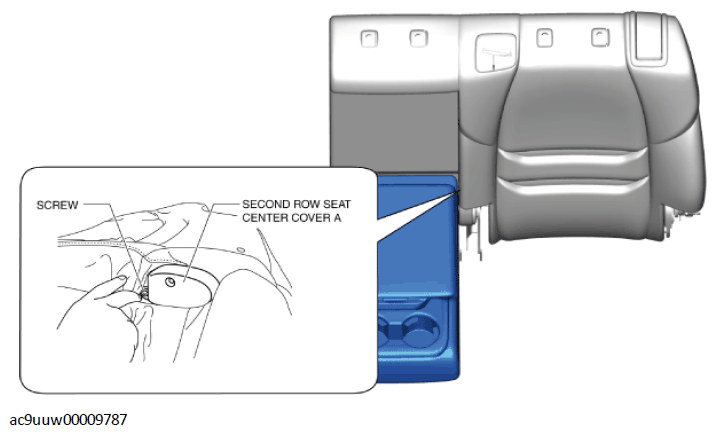

    Fig 2: Second Row Seat Center Cover A And Screw
    G11432549Courtesy of MAZDA MOTORS CORP.
  6. Remove second-row seat center cover B.

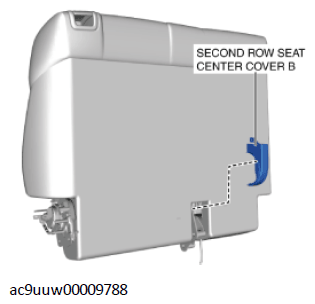

    Fig 3: Second-Row Seat Center Cover B
    G11432550Courtesy of MAZDA MOTORS CORP.
  7. Remove the clip in the direction of the arrow shown in the figure.

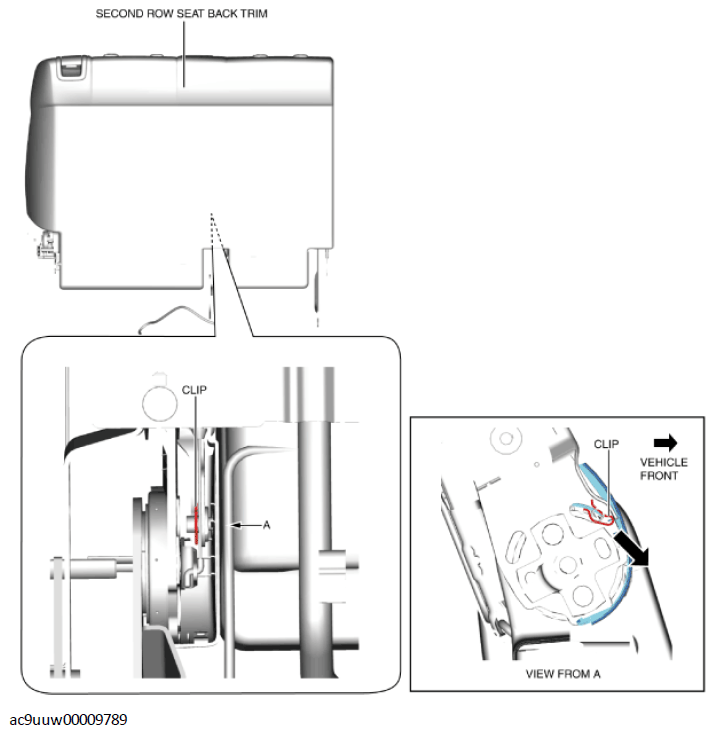

    Fig 4: Removing Second Row Seat Back Trim Clip
    G11432551Courtesy of MAZDA MOTORS CORP.
  8. Move the second-row seat center armrest in the order of arrows (1),(2) shown in the figure and remove it.

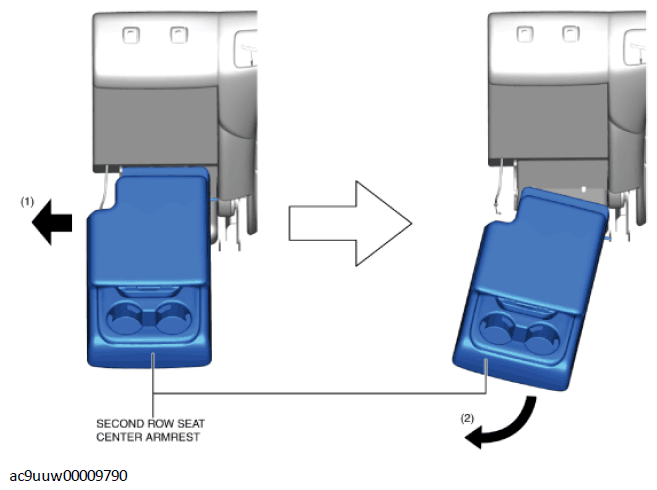

    Fig 5: Moving Second-Row Seat Center Armrest
    G11432552Courtesy of MAZDA MOTORS CORP.
  9. Remove second-row seat center cover A.

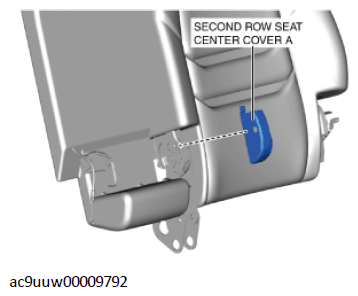

    Fig 6: Second-Row Seat Center Cover A
    G11432553Courtesy of MAZDA MOTORS CORP.
  10. While pressing the second-row center seat belt cover tabs in the direction of arrows (1) shown in the figure, move the second-row center seat belt cover in the direction of arrows (2) and detach the second-row center seat belt cover tabs from the second-row seat back frame.

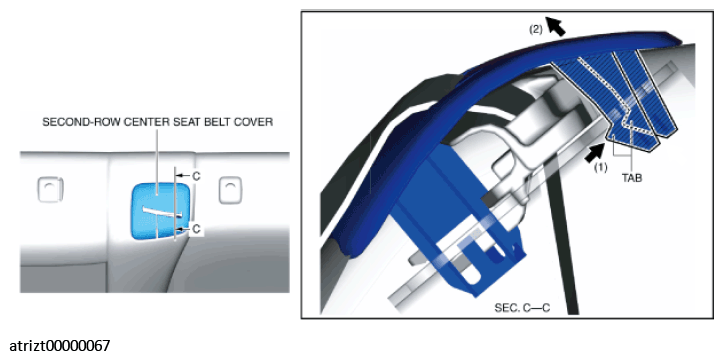

    Fig 7: Detaching Second-Row Center Seat Belt Cover Tabs From Second-Row Seat Back Frame
    G11432554Courtesy of MAZDA MOTORS CORP.
  11. While pressing the second-row center seat belt cover tabs in the direction of arrows (1) shown in the figure, move the second-row center seat belt cover in the direction of arrows (2) and detach the second-row center seat belt cover tabs from the second-row seat back frame.

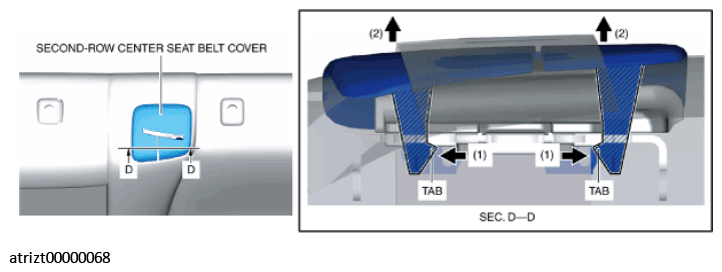

    Fig 8: Pressing Second-Row Center Seat Belt Cover Tabs
    G11490670Courtesy of MAZDA MOTORS CORP.
  12. Remove the second-row center seat belt cover.
  13. Remove the cover and then remove the screws.

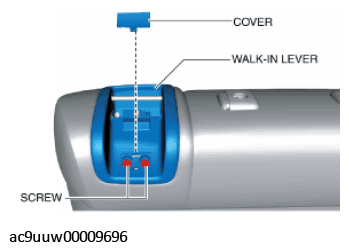

    Fig 9: Second-Row Center Seat Belt Cover, Walk-In Lever And Screw
    G11432555Courtesy of MAZDA MOTORS CORP.

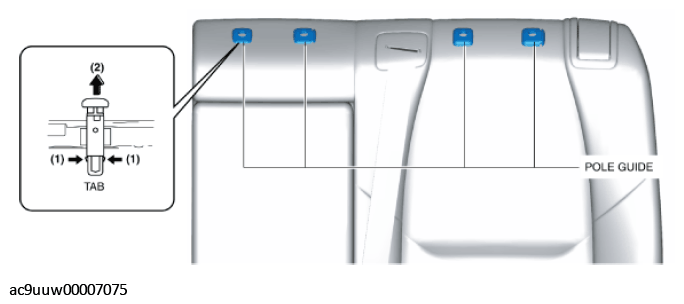

  14. Release the pole guide tabs in the direction of arrows (1) shown in the figure, then pull the pole guide out in the direction of arrow (2).
    Fig 10: Pulling Out Pole Guide
    G11432556Courtesy of MAZDA MOTORS CORP.
  15. Lift up the second-row seat back trim and second-row seat back pad as a single unit and remove it from the second-row seat back frame.

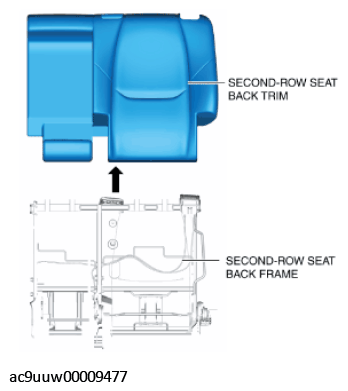

    Fig 11: Lifting Up Second-Row Seat Back Trim And Second-Row Seat Back Pad As Single Unit
    G11432557Courtesy of MAZDA MOTORS CORP.
  16. Install in the reverse order of removal.
