Side Wall Removal/Installation: Driver-side

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver-side console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
Remove the screw.

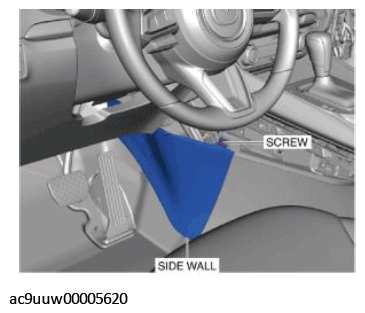

Fig 1: Side Wall Screws
Courtesy of MAZDA MOTORS CORP.
Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks and clip.
CAUTION:
- If hooks and clip are removed forcefully, guide may be damaged. Carefully remove hooks and clip so as not to damage guide.

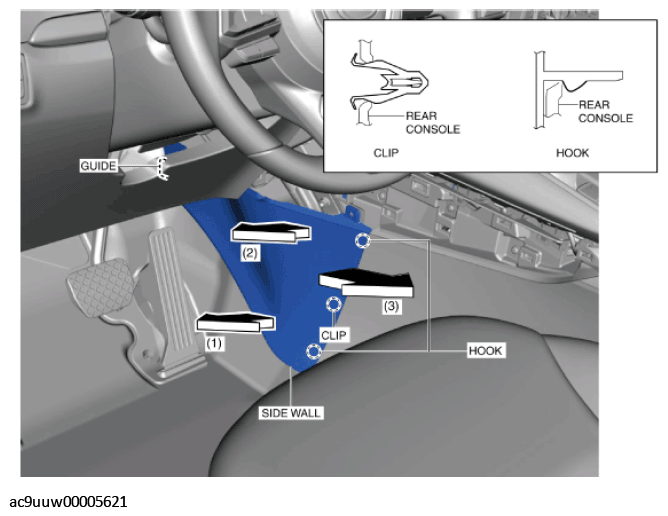

Fig 2: Pulling Side Wall
Courtesy of MAZDA MOTORS CORP.
Pull the side wall in the direction of the arrow (3) and remove it while detaching guide.
Install in the reverse order of removal.
