Upper Column Cover

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the steering wheel to the bottommost position.

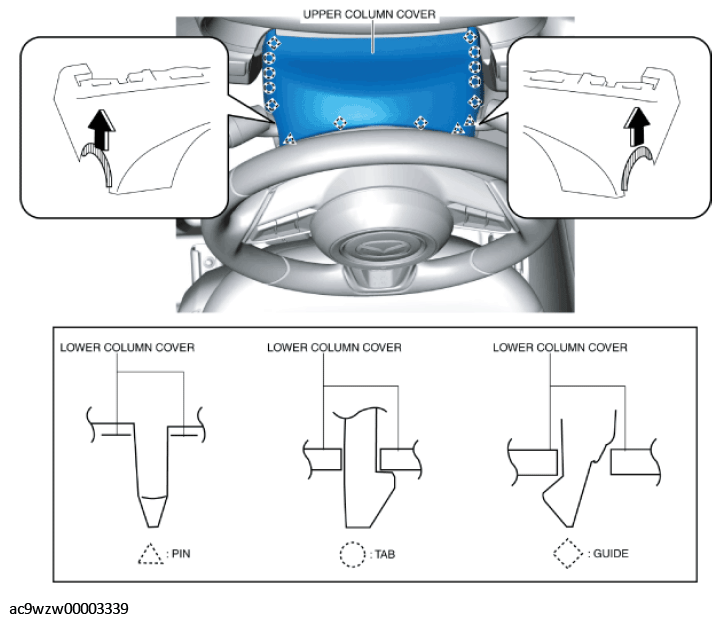

  2. Press the shaded area shown in the figure, lift the upper column cover in the direction of the arrow, and detach the pins, tabs, and guides of the upper column cover from the lower column cover.
    Fig 1: Lifting Upper Column Cover
    G11434861Courtesy of MAZDA MOTORS CORP.

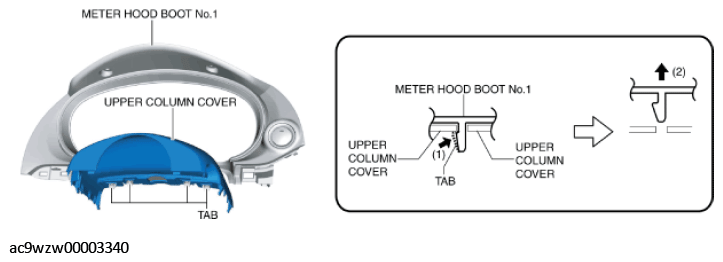

  3. While pressing the tabs in the directions of arrows (1) shown in the figure, press it up in the direction of arrow (2) and detach the meter hood boot No. 1 tabs from the upper column cover.
    Fig 2: Detaching Meter Hood Boot No. 1 Tabs From Upper Column Cover
    G11434862Courtesy of MAZDA MOTORS CORP.
  4. Detach all meter hood boot No. 1 tabs from the upper column cover.
  5. Remove the upper column cover.
  6. Install in the reverse order of removal.
