Power Liftgate (PLG) Buzzer Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

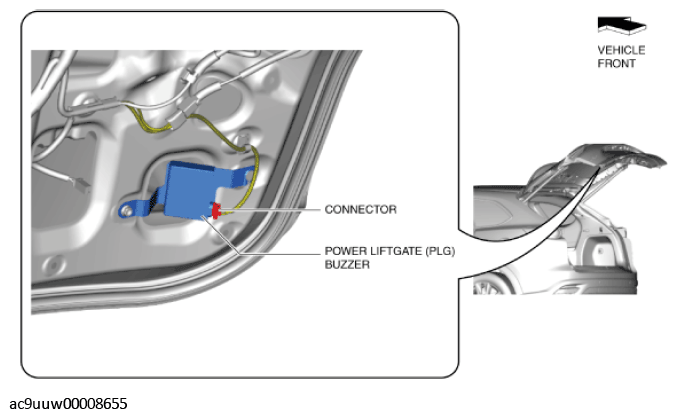

    Fig 1: Power Liftgate Buzzer And Connector
    G11430908Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.

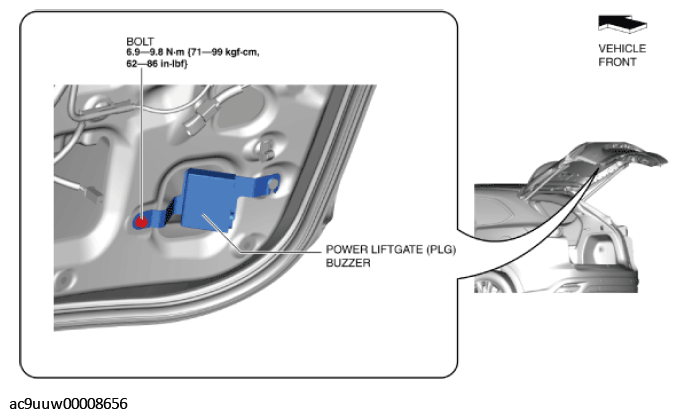

    Fig 2: Power Liftgate Buzzer And Bolt With Torque Specification
    G11430909Courtesy of MAZDA MOTORS CORP.
  5. Move the power liftgate (PLG) buzzer in the direction of the arrow shown in the figure and remove it.

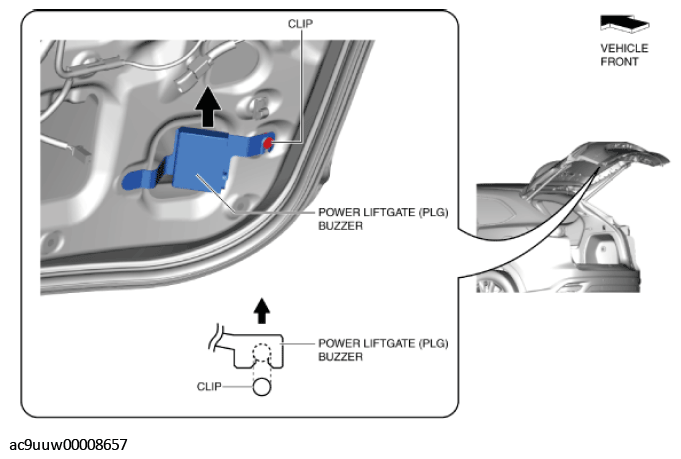

    Fig 3: Moving Power Liftgate Buzzer
    G11430910Courtesy of MAZDA MOTORS CORP.
  6. Remove the power liftgate (PLG) buzzer.
  7. Install in the reverse order of removal.
