Front Door Checker Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the front door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Remove the bolt.

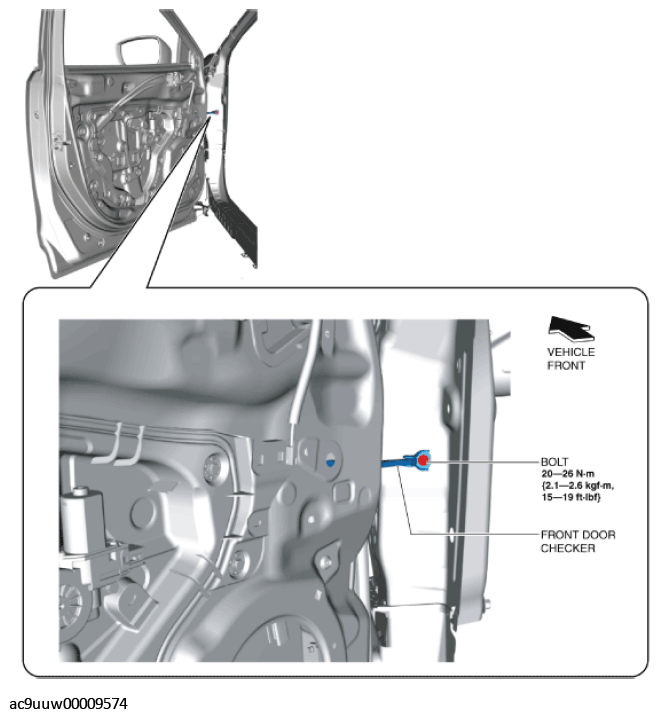

    Fig 1: Front Door Checker And Bolt With Torque Specification
    G11430868Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts.

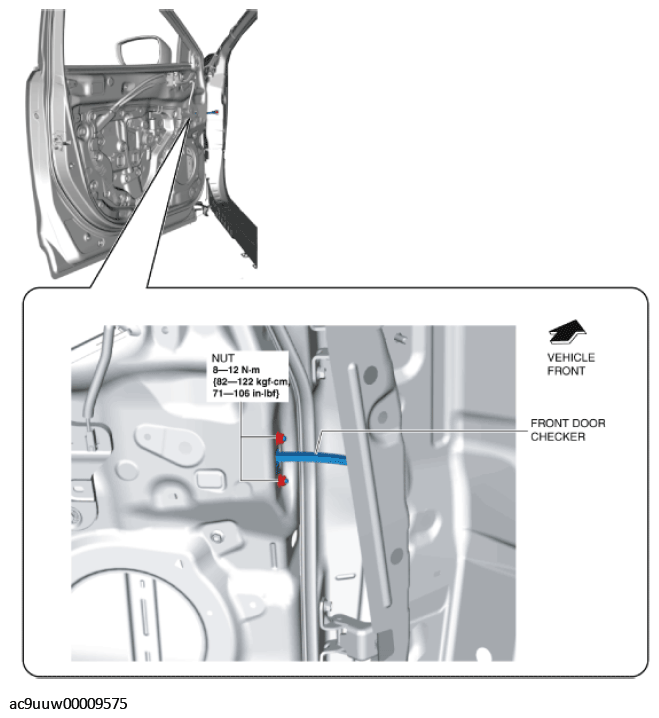

    Fig 2: Front Door Checker And Nuts With Torque Specification
    G11430869Courtesy of MAZDA MOTORS CORP.
  7. Pull out the front door checker from the front door speaker installation hole.
  8. Install in the reverse order of removal.
