USB Port/SD Card Slot Hub Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the rear console panel. (See REAR CONSOLE PANEL REMOVAL/INSTALLATION .)
- Remove the rear heat duct No. 1. (See REAR HEAT DUCT No. 1 REMOVAL/INSTALLATION .)

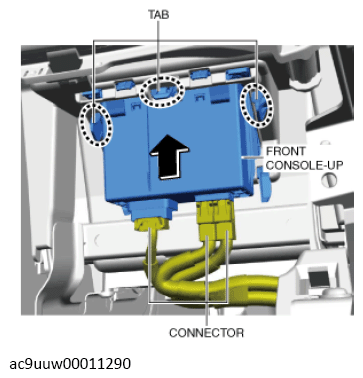

- Disconnect the connectors.
- Remove the front console-up in the direction of the arrow while detaching the tabs.

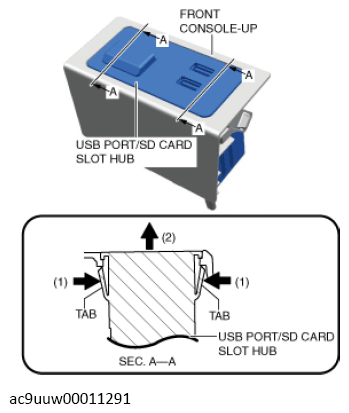

- While pressing the tabs of the USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the USB port/SD card slot hub from the front console-up.
- Remove the USB port/SD card slot hub.
- Install in the reverse order of removal.
