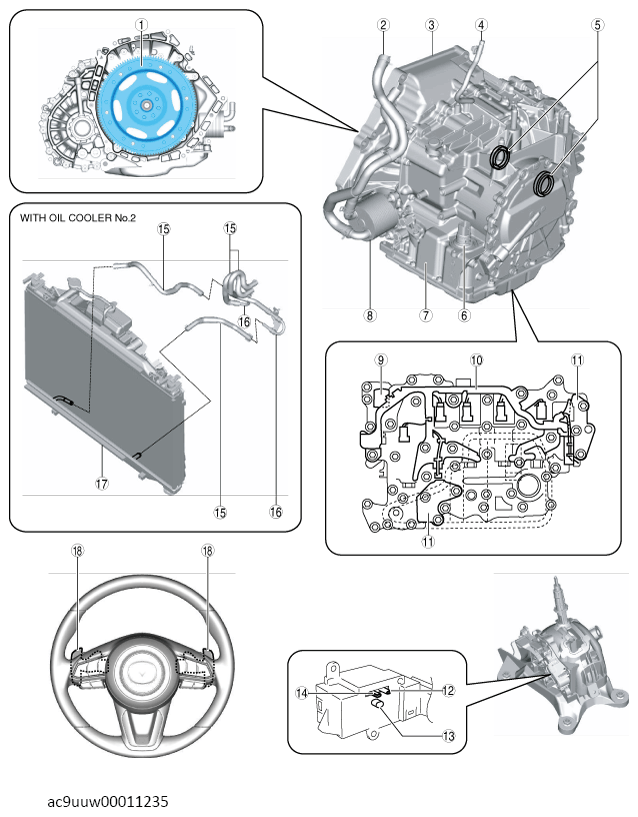

| 1 |
Drive plate
(See DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 2 |
Water hose
(See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 3 |
Automatic transaxle
(See MECHANICAL SYSTEM TEST [GW6A-EL, GW6AX-EL] .)
(See ROAD TEST [GW6A-EL, GW6AX-EL] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [GW6A-EL, GW6AX-EL] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GW6A-EL, GW6AX-EL] .)
(See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [GW6A-EL, GW6AX-EL] .)
(See INITIAL LEARNING [GW6A-EL, GW6AX-EL] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .) |
| 4 |
Breather hose
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .) |
| 5 |
Oil seal (differential)
(See OIL SEAL (DIFFERENTIAL) REPLACEMENT [GW6A-EL, GW6AX-EL] .) |
| 6 |
Oil seal (control valve body)
(See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT [GW6A-EL, GW6AX-EL] .) |
| 7 |
Control valve body
(See CONTROL VALVE BODY REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .)
(See TCM CONFIGURATION [GW6A-EL, GW6AX-EL] .) |
| 8 |
Oil cooler
(See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 9 |
ON/OFF solenoid
(See ON/OFF SOLENOID REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 10 |
Coupler component
(See COUPLER COMPONENT REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 11 |
Oil pressure switch
(See OIL PRESSURE SWITCH REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 12 |
Down switch
(See DOWN SWITCH INSPECTION [GW6A-EL, GW6AX-EL] .)
(See DOWN SWITCH REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 13 |
M position switch
(See M POSITION SWITCH INSPECTION [GW6A-EL, GW6AX-EL] .)
(See M POSITION SWITCH REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 14 |
Up switch
(See UP SWITCH INSPECTION [GW6A-EL, GW6AX-EL] .)
(See UP SWITCH REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 15 |
Oil hose
(See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 16 |
Oil pipe
(See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 17 |
Oil cooler No. 2
(See OIL COOLER REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
| 18 |
Steering shift switch
(See STEERING SHIFT SWITCH REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .) |
