Heater Pipe And Hose Component Removal/Installation: Notes

NOTE:

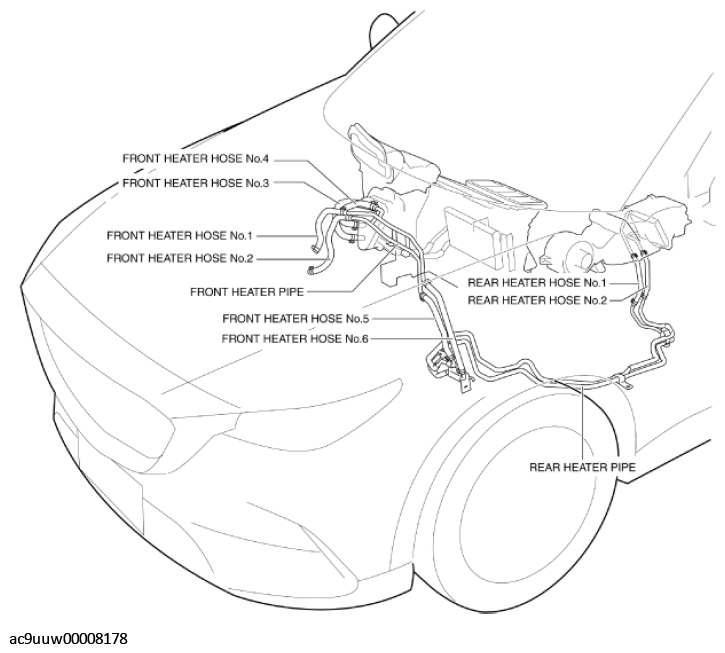

The heater pipe and hose component consists of the following parts.

G11433514

Courtesy of MAZDA MOTORS CORP.
