Evaporative Hose Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the evaporative hose as shown in the figure.

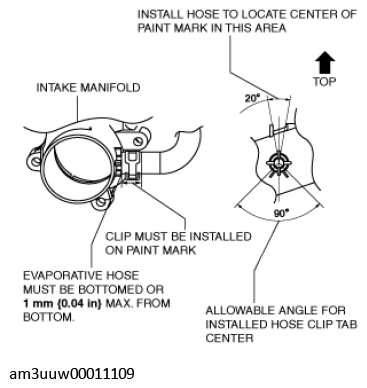

Fig 1: Installing Evaporative Hose

Courtesy of MAZDA MOTORS CORP.
