Image Not Output In All Modes [Entertainment System [With Center Display]]: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
IMAGE NOT OUTPUT IN ALL MODES (ENTERTAINMENT SYSTEM - WITH CENTER DISPLAY) DESCRIPTION AND POSSIBLE CAUSES
| Description |
IMAGE NOT OUTPUT IN ALL MODES |
| Image is not output in center display even if any mode is selected |
| Possible Causes |
- Center display setting is off
- Center display B+ power supply circuit malfunction (DTC B108E:1C is stored in connectivity master unit (CMU))
- Center display ACC power supply circuit malfunction (DTC B108E:1C is stored in connectivity master unit (CMU))
- Connectivity master unit (CMU) B+ power supply circuit malfunction (DTC U3003:16 is stored in connectivity master unit (CMU))
- Connectivity master unit (CMU) ACC power supply circuit malfunction(DTC U3003:16 is stored in connectivity master unit (CMU))
- Open or short circuit in wiring harness between the following terminals: (B108E:06 is stored in connectivity master unit (CMU))
- Connectivity master unit (CMU) terminal 3B and center display terminal 2B
- Connectivity master unit (CMU) terminal 3D and center display terminal 2D
- Connector poor contact or terminal damage
- Open circuit in wiring harness between center display terminal 1B and body ground
- Open circuit in wiring harness between connectivity master unit (CMU) terminal 2L, 2D, 2C and body ground
- Center display malfunction
- Connectivity master unit (CMU) malfunction
|

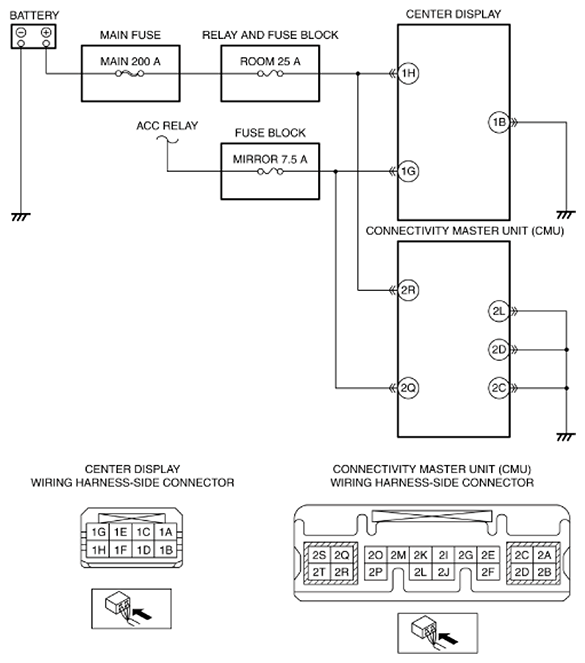

| System Wiring Diagram |
|
